Crystek公司成立于1958年，是射頻微波和頻率控制行業的高性能技術世界領導者。Crystek晶振公司廣泛的產品包括各種終端市場，包括無線，微波無線電，電信，工業，企業，航空航天和政府部門。

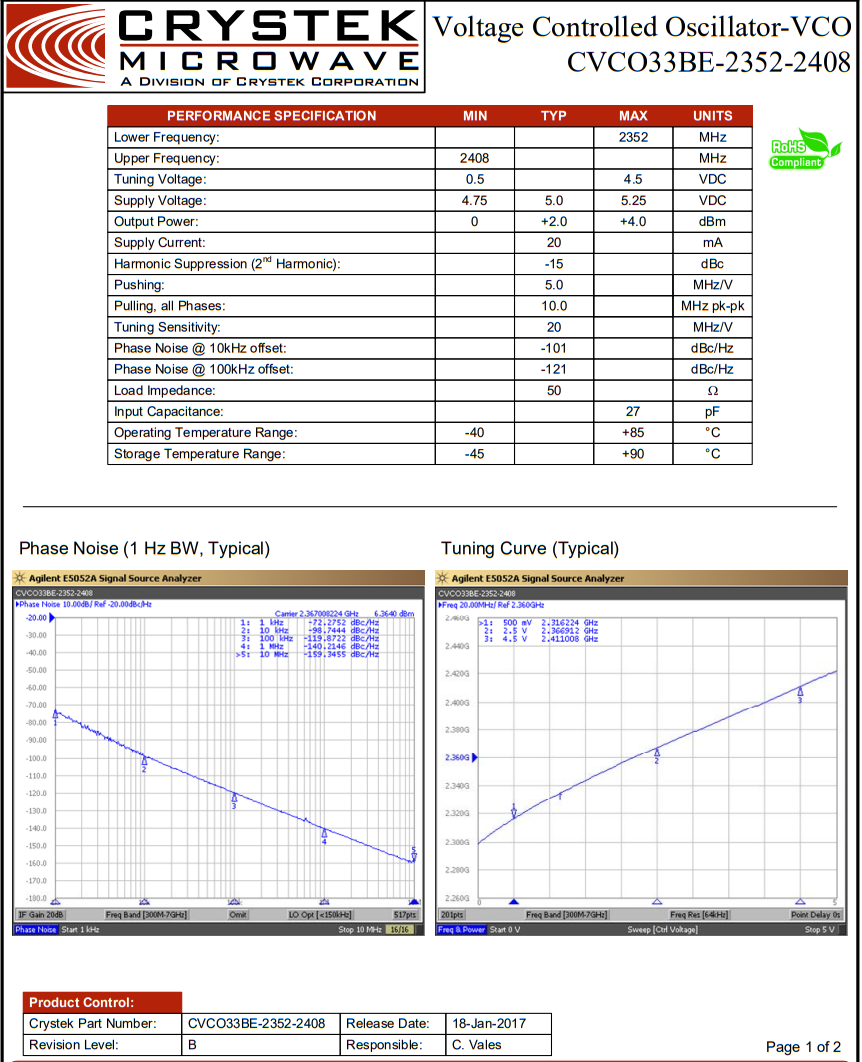

佛羅里達州邁爾斯堡—2023年2月8日—Crystek公司的CVCO33BE-2352-2408 VCO(電壓控制振蕩器)工作頻率為2352-2408 MHz，控制電壓范圍為0.5 - 4.5 V。該VCO具有典型的相位噪聲-101 dBc/Hz @ 10 kHz偏移，具有出色的線性度。輸出功率一般為+2.0 dBm。CVCO33BE-2352-2408貼片晶振在美國設計和制造，采用行業標準0.3 x 0.3英寸SMD封裝。輸入電壓為5 V，典型電流消耗為20 mA。拉力和推力分別最小化到10.0 MHz pk-pk和5.0 MHz/V。二次諧波抑制是典型的-15 dBc。CVCO33BE-2352-2408是數字無線電設備、固定無線接入、衛星通信系統和基站等應用的理想選擇。

Fort Myers, FL - February 8, 2023 - Crystek's CVCO33BE-2352-2408 VCO (Voltage Controlled Oscillator) operates from 2352 to 2408 MHz with a control voltage range of 0.5 to 4.5 V. This VCO features typical phase noise of -101 dBc/Hz @ 10 kHz offset with excellent linearity. Output power is typically +2.0 dBm.Engineered and manufactured in the USA, the model CVCO33BE-2352-2408 is packaged in the industry-standard 0.3 x 0.3 inch SMD package. Input voltage is 5 V, with a typical current consumption of 20 mA. Pulling and Pushing are minimized to 10.0 MHz pk-pk and 5.0 MHz/V, respectively. Second harmonic suppression is -15 dBc typical.The CVCO33BE-2352-2408 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.

Crystek原廠編碼	生產商品牌	型號	類型	頻率	輸出	電源電壓
CCLD-033-50-100.000	Crystek	CCLD	XO	100 MHz	LVDS	3.3V
CCLD-033-50-125.000	Crystek	CCLD	XO	125 MHz	LVDS	3.3V
CCLD-033-50-156.250	Crystek	CCLD	XO	156.25 MHz	LVDS	3.3V
CVHD-037X-80	Crystek	CVHD-037X	VCXO	80 MHz	CMOS	3.3V
CVHD-950X-122.880	Crystek	CVHD-950	VCXO	122.88 MHz	CMOS	3.3V
CVHD-950-122.880	Crystek	CVHD-950	VCXO	122.88 MHz	CMOS	3.3V
CVHD-037X-100	Crystek	CVHD-037X	VCXO	100 MHz	CMOS	3.3V
CVHD-950-100.000	Crystek	CVHD-950	VCXO	100 MHz	CMOS	3.3V
CCHD-957-25-22.5792	Crystek	CCHD-957	XO	22.5792 MHz	HCMOS	3.3V
CCHD-957-25-24.576	Crystek	CCHD-957	XO	24.576 MHz	HCMOS	3.3V
CCHD-957-25-49.152	Crystek	CCHD-957	XO	49.152 MHz	HCMOS	3.3V
CCHD-957-25-45.1584	Crystek	CCHD-957	XO	45.1584 MHz	HCMOS	3.3V
CVSS-945-100.000	Crystek	CVSS-945	VCXO	100 MHz	Sine Wave	5V
CVSS-945X-100.000	Crystek	CVSS-945	VCXO	100 MHz	Sine Wave	5V
CVS575S-500.000	Crystek	CVS575S	VCSO (SAW)	500 MHz	Sine Wave	3.3V
CVCSO-914-1000	Crystek	CVCSO	VCSO (SAW)	1 GHz	Sine Wave	5V
CCHD-575-25-24.576	Crystek	CCHD-575	XO	24.576 MHz	HCMOS	3.3V
CCPD-034-50-200.000	Crystek	CCPD-034	XO	200 MHz	LVPECL	3.3V
CVHD-950-80.000	Crystek	CVHD-950	VCXO	80 MHz	CMOS	3.3V
CVSS-945-125.000	Crystek	CVSS-945	VCXO	125 MHz	Sine Wave	5V
CCSO-914X-250.000	Crystek	CCSO	SO (SAW)	250 MHz	Sine Wave	5V
C3391-4.096	Crystek	C33	XO	4.096 MHz	HCMOS	3.3V
CCPD-033-50-156.250	Crystek	CCPD-033	XO	156.25 MHz	LVPECL	3.3V
CCPD-033-50-161.1328	Crystek	CCPD-033	XO	161.1328 MHz	LVPECL	3.3V
CCHD-575-25-22.5792	Crystek	CCHD-575	XO	22.5792 MHz	HCMOS	3.3V
CVHD-037X-122.88	Crystek	CVHD-037X	VCXO	122.88 MHz	CMOS	3.3V
CVPD-037X-153.6	Crystek	CVPD-037X	VCXO	153.6 MHz	LVPECL	3.3V
CVHD-950-125.000	Crystek	CVHD-950	VCXO	125 MHz	CMOS	3.3V
CCSO-914X-1000.000	Crystek	CCSO	SO (SAW)	1 GHz	Sine Wave	5V
601188	Crystek	-	XO	49.152 MHz	HCMOS	1.8V
CCPD-033-50-100.000	Crystek	CCPD-033	XO	100 MHz	LVPECL	3.3V
CCPD-033-50-106.250	Crystek	CCPD-033	XO	106.25 MHz	LVPECL	3.3V
CCPD-033-50-77.760	Crystek	CCPD-033	XO	77.76 MHz	LVPECL	3.3V
601252	Crystek	-	-	98.304 MHz	-	1.8V
CVHD-950-50.000	Crystek	CVHD-950	VCXO	50 MHz	CMOS	3.3V
CCPD-575X-20-100.000	Crystek	CCPD-575	XO	100 MHz	LVPECL	3.3V
CCHD-575-50-80.000	Crystek	CCHD-575	XO	80 MHz	HCMOS	3.3V
CCHD-950-50-100.000	Crystek	CCHD-950	XO	100 MHz	HCMOS	3.3V
CVSS-945-122.880	Crystek	CVSS-945	VCXO	122.88 MHz	Sine Wave	5V
CCSO-914X3-1000	Crystek	CCSO	SO (SAW)	1 GHz	Sine Wave	3.3V
CXOH20-BP-10.000	Crystek	CXOH20	TCXO	10 MHz	HCMOS	5V
CCHD-575-50-125.000	Crystek	CCHD-575	XO	125 MHz	HCMOS	3.3V
CVSS-945-80.000	Crystek	CVSS-945	VCXO	80 MHz	Sine Wave	5V
CCPD-575X-20-125.000	Crystek	CCPD-575	XO	125 MHz	LVPECL	3.3V
RFPRO33-1000.000	Crystek	RFPRO	SO (SAW)	1 GHz	Sine Wave	3.3V
CPROBS5-0100	Crystek	PRO	XO	100 MHz	Sine Wave	5V
CCHD-950-50-49.152	Crystek	CCHD-950	XO	49.152 MHz	HCMOS	3.3V
CCHD-950-50-80.000	Crystek	CCHD-950	XO	80 MHz	HCMOS	3.3V
CE3391-19.440	Crystek	C33	XO	19.44 MHz	HCMOS	3.3V
C3291-2.048	Crystek	C3291	XO	2.048 MHz	HCMOS, TTL	5V
601251	Crystek	-	-	98.304 MHz	-	1.8V
CVHD-950X-100	Crystek	CVHD-950	VCXO	100 MHz	CMOS	3.3V
CCHD-575-50-100.000	Crystek	CCHD-575	XO	100 MHz	HCMOS	3.3V
CVHD-037X-125	Crystek	CVHD-037X	VCXO	125 MHz	CMOS	3.3V
