Suntsu振蕩器SGO12S-10.000M系列保持精確計時

來源:http://www.omrb.cn 作者:泰和盛電子 2024年05月20

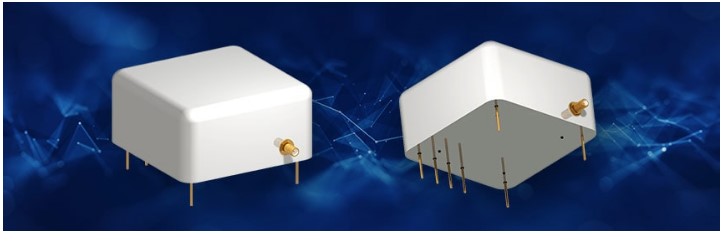

Suntsu振蕩器SGO12S-10.000M系列保持精確計時
Suntsu松圖晶振公司發布了第一款GPS紀律振蕩器(GPS do)sgo 10s。現在,我們很高興地說,我們一直在開發一個新的GPSDO,以幫助您構建更好的產品。GPSDO也稱為GPS時鐘,由高穩定性石英晶體振蕩器和GPS接收器組成。這些設備的工作原理是根據GPS接收器或GNSS衛星信號通過跟蹤環路控制或操縱振蕩器的輸出。
GPS接收器和振蕩器的結合使設備具有短期和長期穩定性,使其成為最精確和最可靠的時間源之一。因此,GPS時鐘被用于各種網絡和衛星系統。它們擅長的其他應用包括作為協調世界時(UTC)的基礎、與無線基站同步、PNT(如無源雷達)、關鍵基礎設施以及Cube和LEO衛星通信。在努力提升電氣性能并縮小封裝尺寸以滿足市場需求后,Suntsu自豪地宣布我們的產品線將推出下一代GPS標準OCXO系列SGO12S石英晶振。由于我們在沒有GPS鎖定的情況下改善了工作溫度范圍內的相位噪聲性能和頻率穩定性,因此升級后的GPSDO可用于軍事通信設備。
Suntsu晶振SGO12S包括一個內部GNSS接收器,具有1PPS輸出,與GPS/QZSS L1 C/A、GLONASS L10F、北斗B1 SBAS L1、WAAS、EGNOS、MSAS、GAGAN和伽利略應用程序兼容。該振蕩器還通過SMA連接器連接到外部天線,如果GNSS信號出現故障,該連接器可以在24小時內保持1PPS信號,保持時間為1.5 s。值得注意的是,可靠的OCXO是必要的,以確保即使在信號丟失時也能保持準確的時間。

SGO12S Product Specifications
Package Size 50mmx50mm
Frequency 10MHz
Frequency Stability vs. Operating Temp.
(Without GPS Lock)
±0.1ppb over -20~60°C
±5.0ppb over -20~70°C
±15.0ppb over -40~80°C
Frequency Accuracy ±1ppt
Pulse Width 1PPS Reference Input and Output
Holdover 24Hrs ±1.5µs
Supply Voltage 12.0 V
Other Features Sinewave Output
Ultra-Low Phase Noise
Suntsu振蕩器SGO12S-10.000M系列保持精確計時
we released the first version of our GPS Disciplined Oscillator (GPSDO), the SGO10S. Now, we’re happy to say we’ve been working on a new GPSDO to help you build better products. A GPSDO, also called a GPS clock, is made up of a high-stability oscillator and a GPS receiver. These devices work by having the output of the oscillator controlled, or steered, through a tracking loop according to the GPS receiver or GNSS satellite signal.
The combination of a GPS receiver and the oscillator allows both short- and long-term stability for the device, making them one of the most accurate and trusted sources of timing. Because of this, GPS clocks are used in various network and satellite systems. Other applications they are good for include functioning as the basis for Coordinated Universal Time (UTC), synchronization to wireless base stations, PNT such as passive radar, critical infrastructure, and Cube and LEO Satellite Communications. After working to upgrade electrical performance and reduce the package size to meet market demands, Suntsu is proud to announce the next GPS Disciplined OCXO series, SGO12S, to our product line. Because we have improved phase noise performance and frequency stability over operating temperature without GPS lock, our upgraded GPSDO can be used for military communication equipment.
Suntsu’s SGO12S includes an internal GNSS receiver with 1PPS output compatible with GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1, WAAS, EGNOS, MSAS, GAGAN, and Galileo applications. This oscillator is also connected to an external antenna via a SMA connector which can maintain a 1PPS signal with a holdover of 1.5µs for a 24-hour period if GNSS signals fail. It’s important to note that a reliable OCXO is necessary to ensure that even when signals are lost, accurate timing is preserved.

進口晶振 包裝尺寸 輸出
SQG22C2A07-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2A071-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2A16-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2A161-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2A17-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2A171-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2A27-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2A271-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2A38-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2A381-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2A48-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2A481-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR 有源晶振
SQG22C2B07-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2B071-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2B16-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2B161-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2B17-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2B171-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2B27-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2B271-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2B38-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2B381-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
SQG22C2B48-8.000M-250.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR CMOS
