ECS Inc國際晶振集團符合世界各地對于石英晶體,貼片晶振,有源晶振,晶體振蕩器等產品要求的所有標準.質量符合國際標準體現了在商業實踐和產品方面的卓越品質.ECS Inc晶振不僅要讓客戶滿意并且要超越客戶所期望的.激勵鼓勵全體員工通過激發創造力、主動性和責任感來促進大家做更有意義的事.通過持續改進集成業務流程,以實現系統的有效性、效率和靈活性.

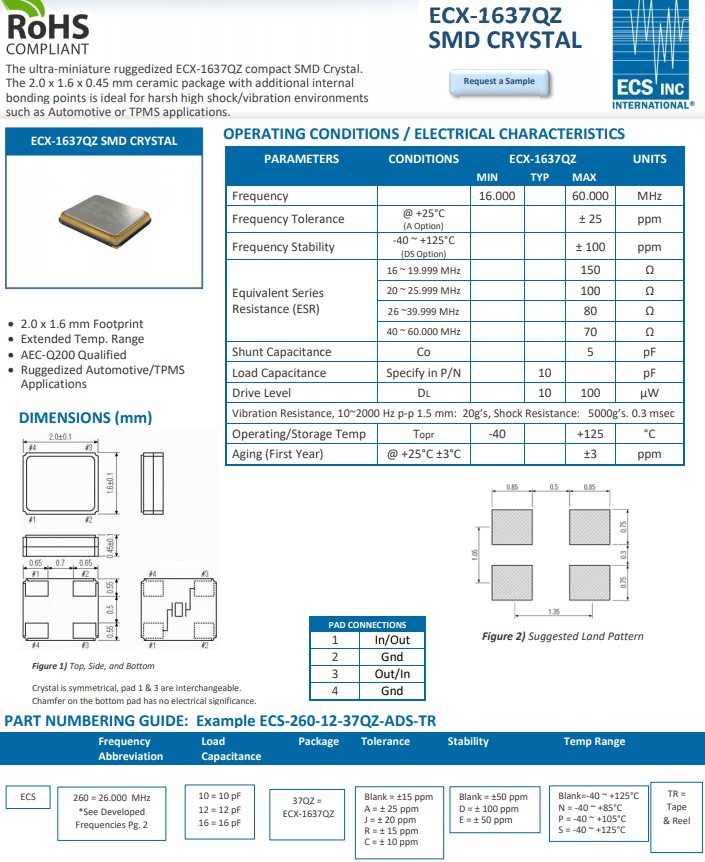

ECS晶振ECX-1637QZ是一種加固型、符合AEC-Q200標準的2.0毫米x 1.6毫米晶體。ECS晶振新推出ECX-1637QZ產品系列是一款2.0毫米x1.6毫米x0.45毫米的四腳貼片晶振，符合AEC-Q200標準，具有5000克0.3毫秒的加固抗震性能。這種表面貼裝(SMD)晶體提供16MHz至60MHz的頻率范圍，在-40°C至+125°C的汽車擴展溫度范圍內，頻率容差精確到10ppm，頻率穩定性精確到50ppm，這種ECS-260-12-37QZ-ADS-TR緊湊型晶體非常適合汽車、醫療和工業應用。

Image	Part Number	Frequency	Frequency Stability
	ECS-200-10-37QZ-AES-TR	20 MHz	±50 PPM
	ECS-240-6-37QZ-RES-TR	24 MHz	±50 PPM
	ECS-250-6-37QZ-RES-TR	25 MHz	±50 PPM
	ECS-250-8-37QZ-AES-TR	25 MHz	±50 PPM
	ECS-271.2-10-37QZ-AES-TR	27.12 MHz	±50 PPM
	ECS-400-10-37QZ-RES-TR	40 MHz	±50 PPM
	ECS-400-8-37QZ-RES-TR	40 MHz	±50 PPM

原廠編碼	進口晶振	型號	頻率	工作溫度	包裝/封裝
ECS-240-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	24MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-240-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	24MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-240-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	24MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-250-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	25MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-250-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	25MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-250-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	25MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-260-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	26MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-260-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	26MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-260-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	26MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-270-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	27MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-270-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	27MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-270-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	27MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-245.7-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	24.576MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-245.7-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	24.576MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-245.7-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	24.576MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-300-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	30MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-300-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	30MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-300-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	30MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-320-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	32MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-320-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	32MHz	-40°C ~ 125°C	SMD晶體
ECS-320-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	32MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-192-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	19.2MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-192-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	19.2MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-192-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	19.2MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-271.2-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	27.12MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-271.2-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	27.12MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-271.2-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	27.12MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-200-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	20MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-200-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	20MHz	-40°C ~ 125°C	4-SMD, No Lead
ECS-200-10-37Q-ES-TR	ECS Crystal	ECX-1637Q	20MHz	-40°C ~ 125°C	4-SMD, No Lead
