ARGO晶振 ARGO晶振公司是專業提供和設計波段頻率控制設備和微波無線通信零部件.我們還分銷日本,歐洲和美國的一些知名品牌零部件.我們致力于發展與計算機,IT和無線通信公司無任何界限的信息時代.我們秉承經營者的踏實,誠懇的態度,互惠互利的精神,實現共贏的目標,以誠信為本,誠信為本,公平交易為宗旨,以誠信,勤勉,誠信,精神質量第一,客戶滿意的經營理念,將以優良的產品質量,優惠的價格,優質的服務與您建立長期穩定的合作關系,共創輝煌事業.
- 產品型號：66749274
- 晶振頻率：32MHZ
- 晶振尺寸：1.6*1.2*0.4mm
- 產品應用： X1E0002510138FA-118T32MHZ1612mm-20~+70℃10ppm,尺寸為1612mm,頻率為32MHZ，工作溫度-20C~+70C,頻率公差10ppm,日本進口晶振，愛普生晶振，無源貼片晶振，石英晶體諧振器，石英晶體，水晶振動子，高品質晶振，通信模塊...
-

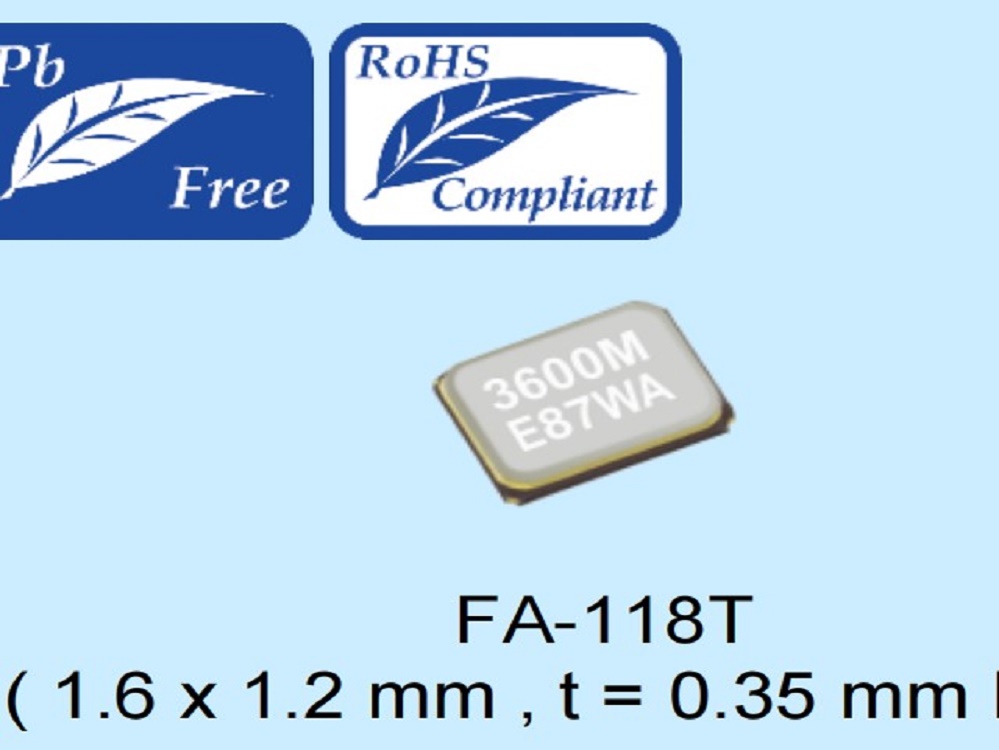

X1E0002510138 FA-118T 32MHZ 1612mm -20~+70℃ 10ppm
.JPG)
X1E0002510138 FA-118T 32MHZ 1612mm -20~+70℃ 10ppm,尺寸為1612mm,頻率為32MHZ，工作溫度-20°C~+70°C,頻率公差10ppm,日本進口晶振，愛普生晶振，無源貼片晶振，石英晶體諧振器，石英晶體，水晶振動子，高品質晶振，通信模塊專用晶振，可穿戴設備晶振，MCU時鐘晶振，X1E0002510144無源晶振，X1E0002510150諧振器。
無源晶振產品主要應用于消費和工業應用的小型通信模塊，可穿戴設備，MCU時鐘等領域。X1E0002510138 FA-118T 32MHZ 1612mm -20~+70℃ 10ppm.

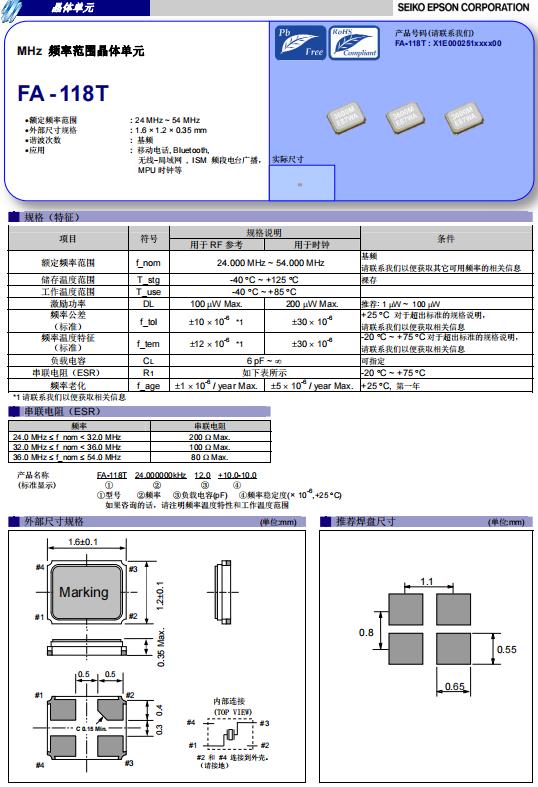

X1E0002510138 FA-118T 32MHZ 1612mm -20~+70℃ 10ppm 參數表
| Item | Symbol | Specifications | Unit | Condition / Remarks | |||||||||||||||||||||||||||
| Nominal frequency range | f_nom | 24.000 to 54.000 | MHz | ||||||||||||||||||||||||||||
|
Frequency tolerance (Standard) |
f_tol | ±10 / ±30 | x10-6 |
T_use = +25 °C ± 3 °C DL = 100 μW Does not include frequency aging Please contact Epson for requirements not listed in the specifications |
|||||||||||||||||||||||||||
|
Frequency vs. temperature characteristics (Standard) |
f_tem | ±12 / ±30 | x10-6 |
Reference at t_use = +25 °C ± 3 °C -20 °C to +75 °C Please contact Epson for requirements not listed in the specifications |
|||||||||||||||||||||||||||
| Load capacitance | CL | 6 to ? | pF | Please specify | |||||||||||||||||||||||||||
| Motional resistance (ESR) | R1 | Table 1. | Ω |
π circuit IEC 60444-2 T_use = Operating temperature range DL = 100 μW |
|||||||||||||||||||||||||||
| Shunt capacitance | C0 | 3.0 Max. | pF | ||||||||||||||||||||||||||||
| Frequency aging | f_age | ±1 Max. / ±5 Max. | x10-6 | T_use = +25 °C ± 3 °C | |||||||||||||||||||||||||||
| Item | Symbol | Rating value | Unit | Note | |||||||||||||||||||||||||||
| Min. | Typ. | Max. | |||||||||||||||||||||||||||||
| Storage temperature range | T_stg | --40 | - | +125 | °C |
Satisfy environmental characteristics specifications |
|||||||||||||||||||||||||
| Item | Symbol | Rating value | Unit | Note | |||||||||||||||||||||||||||
| Min. | Typ. | Max. | |||||||||||||||||||||||||||||
| Operating temperature range | T_use | --40 | - | +85 | °C | ||||||||||||||||||||||||||
| --40 | - | +105 | Please contact Epson | ||||||||||||||||||||||||||||
| Level of drive | DL | 1 | 200 | μW | Recommended: 10 μW | ||||||||||||||||||||||||||
•包裝尺寸:1.6x1.2mm, t =0.35mmMax。
•頻率范圍:24mhz~54mhz
•頻率公差(標準):±10 x10-6/±30x10-6(@+25°C)
•頻率與溫度特性(標準):
±12x10-6(-20°C至+75°C)
±30×10-6(-20°C至+75°C)
•ESR: 200Ω最大。(24MHz<f_nom<32MHz)
100ΩMax。(32MHz<f_nom<36MHz)
80ΩMax。(36MHz<f_nom<54MHz)
訂購產品時請注明型號名稱、頻率和規格編號。
有關規格的更多問題，請隨時與我們聯系。
微信：13824306246 QQ:794113422 郵箱：[email protected] 座機:0755-27872782
更多相關EPSON愛普生石英晶振型號
有關規格的更多問題，請隨時與我們聯系。
微信：13824306246 QQ:794113422 郵箱：[email protected] 座機:0755-27872782
更多相關EPSON愛普生石英晶振型號
| 編碼 | 尺寸 | 型號 | 頻率 | 負載 | 頻率 @+25°C | 工作溫度 |
| X1E0002510093 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-30 ppm | -20 to +70 °C |
| X1E0002510100 | 1.6 x 1.2 x 0.35mm | FA-118T | 27.120000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510102 | 1.6 x 1.2 x 0.35mm | FA-118T | 50.000000 MHz | 8 pF | +/-30 ppm | -40 to +85 °C |
| X1E0002510104 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 10 pF | +/-20 ppm | -40 to +85 °C |
| X1E0002510110 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 12.5 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510111 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 10 pF | +/-50 ppm | -20 to +75 °C |
| X1E0002510113 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 8 pF | +/-10 ppm | -30 to +85 °C |
| X1E0002510121 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-10 ppm | -20 to +85 °C |
| X1E0002510123 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510126 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 7 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510136 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-15 ppm | -20 to +105 °C |
| X1E0002510138 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 6 pF | +/-10 ppm | -20 to +70 °C |
| X1E0002510141 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 8 pF | +/-20 ppm | -40 to +85 °C |
| X1E0002510144 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 20 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510145 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 20 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510148 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510150 | 1.6 x 1.2 x 0.35mm | FA-118T | 38.400000 MHz | 20 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510152 | 1.6 x 1.2 x 0.35mm | FA-118T | 48.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510153 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510154 | 1.6 x 1.2 x 0.35mm | FA-118T | 50.000000 MHz | 12 pF | +/-30 ppm | -40 to +85 °C |
| X1E0002510155 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 9 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510157 | 1.6 x 1.2 x 0.35mm | FA-118T | 26.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510158 | 1.6 x 1.2 x 0.35mm | FA-118T無源石英晶體 | 50.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510159 | 1.6 x 1.2 x 0.35mm | FA-118T | 48.000000 MHz | 8 pF | +/-15 ppm | -40 to +85 °C |
| X1E0002510160 | 1.6 x 1.2 x 0.35mm | FA-118T | 30.000000 MHz | 4 pF | +/-70 ppm | -40 to +85 °C |
| X1E0002510161 | 1.6 x 1.2 x 0.35mm | FA-118T | 37.400000 MHz | 8 pF | +/-10 ppm | -30 to +85 °C |
| X1E0002510166 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 10 pF | +/-10 ppm | -30 to +85 °C |
| X1E0002510169 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 10 pF | +/-50 ppm | -40 to +85 °C |
| X1E0002510033 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 10 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510065 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510099 | 1.6 x 1.2 x 0.35mm | FA-118T | 48.000000 MHz | 6 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510134 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 8 pF | +/-10 ppm | -20 to +85 °C |
| X1E0002510190 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 12 pF | +/-10 ppm | -30 to +85 °C |
| X1E0002510197 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 6 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510201 | 1.6 x 1.2 x 0.35mm | FA-118T | 38.400000 MHz | 8 pF | +/-10 ppm | -20 to +85 °C |
| X1E0002510212 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 6 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510215 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 6 pF | +/-20 ppm | -40 to +85 °C |
| X1E0002510219 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
