首頁進口晶振愛普生石英晶振SG5032CAN-X1G0044510028-CMOS-12MHZ-EPSON-50ppm

SG5032CAN-X1G0044510028-CMOS-12MHZ-EPSON-50ppm

產品型號：2986874

晶振頻率：12MHZ

晶振尺寸：5.0*3.2*1.2mm

產品應用： SG5032CAN-X1G0044510028-CMOS-12MHZ-EPSON-50ppm,尺寸為5032mm,頻率12MHZ,輸出為CMOS，電壓1.6~3.3V，頻率穩定度50ppm.SPXO振蕩器,愛普生石英晶振，有源振蕩器，無線設備晶振，汽車充電器晶振，汽車氛圍燈晶振，5032...

SG5032CAN-X1G0044510028-CMOS-12MHZ-EPSON-50ppm,尺寸為5032mm,頻率12MHZ,輸出為CMOS，電壓1.6~3.3V，頻率穩定度50ppm.SPXO振蕩器,愛普生石英晶振，有源振蕩器，無線設備晶振，汽車充電器晶振，汽車氛圍燈晶振，5032mm有源晶振，石英晶體振蕩器，SMD振蕩器，X1G0044510011晶振，X1G0044510021晶振。
產品主要應用于藍牙模塊，汽車充電器，汽車氛圍燈，同樣也適用于平板電腦，智能手機，網絡設備，儀器設備等領域。

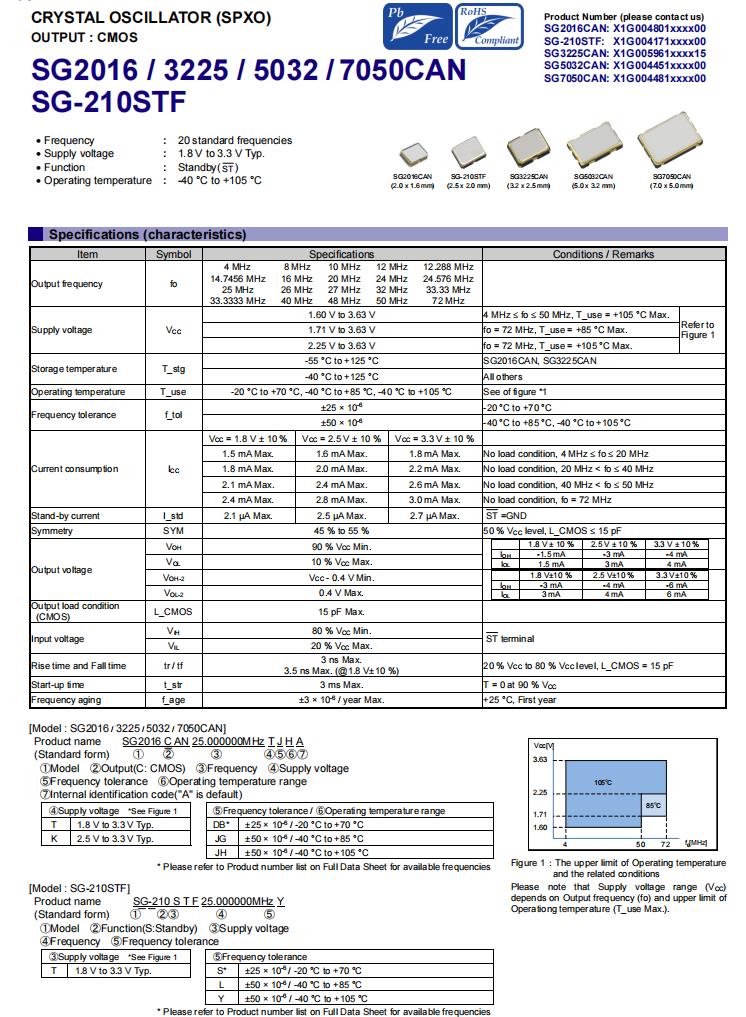

SG5032CAN-X1G0044510028-CMOS-12MHZ-EPSON-50ppm參數表

項目符號規格說明條件

輸出頻率范圍 fo 4 MHz
14.7456 MHz
25 MHz
33.3333 MHz 8 MHz
16 MHz
26 MHz
40 MHz 10 MHz
20 MHz
27 MHz
48 MHz 12 MHz
24 MHz
32 MHz
50 MHz 12.288 MHz
24.576 MHz
33.33 MHz
72 MHz

電源電壓 VCC 1.60 V to 3.63 V 4 MHz ≤ fo ≤ 50 MHz, T_use = +105 °C Max . Refer to
Figure 1

1.71 V to 3.63 V fo = 72 MHz, T_use = +85 °C Max.

2.25 V to 3.63 V fo = 72 MHz, T_use = + 105 °C Max.

儲存溫度 T_stg -55 °C to +125 °C SG2016CAN, SG3225CAN

-40 °C to +125 °C All others

工作溫度 T_use -20 °C to +70 °C, -40 °C to +85 °C, -40 °C to + 105 °C See of figure *1

頻率公差 f_tol ±25 × 10-6 -20 °C to +70 °C

±50 × 10-6 -40 °C to +85 °C, -40 °C to + 105 °C

電流消耗 ICC VCC  = 1.8 V ± 10 % VCC  = 2.5 V ± 10 % VCC  = 3.3 V ± 10 %

1.5 mA Max. 1.6 mA Max. 1.8 mA Max. No load condition, 4 MHz ≤ fo ≤ 20 MHz

1.8 mA Max. 2.0 mA Max. 2.2 mA Max. No load condition, 20 MHz < fo ≤ 40 MHz

2.1 mA Max. 2.4 mA Max. 2.6 mA Max. No load condition, 40 MHz < fo ≤ 50 MHz

2.4 mA Max. 2.8 mA Max. 3.0 mA Max. No load condition, fo = 72 MHz

待機電流 I_std 2.1 µA Max. 2.5 µA Max. 2.7 µA Max.
ST =GND

占空比 SYM 45 % to 55 % 50 % VCC  level , L_CMOS ≤ 15 pF

輸出電壓 VOH 90 % VCC  Min . 1.8 V ± 10 % 2.5 V ± 10 % 3.3 V ± 10 %

VOL 10 % VCC  Max.    IOH - 1.5 mA -3 mA -4 mA

    IOL 1.5 mA 3 mA 4 mA

VOH-2 VCC - 0.4 V Min . 1.8 V± 10 % 2.5 V± 10 % 3.3 V± 10 %

VOL-2 0.4 V Max.    IOH -3 mA -4 mA -6 mA

    IOL 3 mA 4 mA 6 mA

輸出負載狀態
(CMOS) L_CMOS 15 pF Max.

輸入電壓 VIH 80 % VCC  Min . ST terminal

VIL 20 % VCC  Max.

上升時間和下降時間 tr / tf 3 ns Max.
3.5 ns Max . (@1.8 V± 10 %) 20 % VCC to 80 % VCC  level, L_CMOS = 15 pF

振蕩啟動時間 t_str 3 ms Max. T = 0 at 90 % VCC

頻率老化 f_age ±3 × 10-6 / year Max. +25 °C, First year

SG5032CAN-X1G0044510028-CMOS-12MHZ-EPSON-50ppm晶振特征

頻率： 20個標準頻率
電源電壓： 1.8 V至3.3 V類型。
功能：待機（ST）
工作溫度： -40°C至+105°C

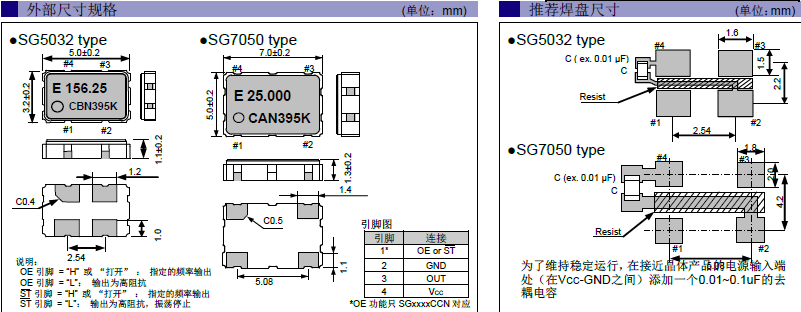

SG5032CAN-X1G0044510028-CMOS-12MHZ-EPSON-50ppm尺寸圖

訂購產品時請注明型號名稱、頻率和規格編號。
有關規格的更多問題，請隨時與我們聯系。
微信：13824306246 QQ:794113422 郵箱：[email protected] 座機:0755-27872782
更多相關愛普生晶振型號

編碼品牌型號 進口晶振頻率尺寸輸出方式電源電壓工作溫度 Freq. Tol./頻率偏差

X1G0044510001 愛普生有源晶振 SG5032CAN 12.288000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510002 愛普生有源晶振 SG5032CAN 16.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510003 愛普生有源晶振 SG5032CAN 24.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510004 愛普生有源晶振 SG5032CAN 25.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510005 愛普生有源晶振 SG5032CAN 27.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510006 愛普生有源晶振 SG5032CAN 33.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510007 愛普生有源晶振 SG5032CAN 48.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510008 愛普生有源晶振 SG5032CAN 50.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510009 愛普生有源晶振 SG5032CAN 54.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510011 愛普生有源晶振 SG5032CAN 20.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510012 愛普生有源晶振 SG5032CAN 40.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510013 愛普生有源晶振 SG5032CAN 10.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510014 愛普生有源晶振 SG5032CAN 32.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510015 愛普生有源晶振 SG5032CAN 16.384000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510016 愛普生有源晶振 SG5032CAN 66.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.710 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510017 愛普生有源晶振 SG5032CAN 1.843200 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510019 愛普生有源晶振 SG5032CAN 14.745600 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510021 愛普生有源晶振 SG5032CAN 8.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510022 愛普生有源晶振 SG5032CAN 33.333000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510023 愛普生有源晶振 SG5032CAN 14.318180 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510026 愛普生有源晶振 SG5032CAN 25.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 105 °C +/-100 ppm

X1G0044510028 愛普生有源晶振 SG5032CAN 12.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510029 愛普生有源晶振 SG5032CAN 24.576000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510030 愛普生有源晶振 SG5032CAN 28.636300 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510031 愛普生有源晶振 SG5032CAN 27.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -20 to 70 °C +/-25 ppm

X1G0044510032 愛普生有源晶振 SG5032CAN 4.096000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510033 愛普生有源晶振 SG5032CAN 6.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510034 愛普生有源晶振 SG5032CAN 4.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510035 愛普生有源晶振 SG5032CAN 18.432000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510036 愛普生有源晶振 SG5032CAN 50.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 105 °C +/-50 ppm

X1G0044510038 愛普生有源晶振 SG5032CAN 1.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510039 愛普生有源晶振 SG5032CAN 1.200000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510040 愛普生有源晶振 SG5032CAN 1.228800 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510041 愛普生有源晶振 SG5032CAN 1.500000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510042 愛普生有源晶振 SG5032CAN 1.536000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510043 愛普生有源晶振 SG5032CAN 2.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510044 愛普生有源晶振 SG5032CAN 2.048000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510045 愛普生有源晶振 SG5032CAN 2.457600 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510046 愛普生有源晶振 SG5032CAN 2.500000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510047 愛普生有源晶振 SG5032CAN 3.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510048 愛普生有源晶振 SG5032CAN 3.072000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510049 愛普生有源晶振 SG5032CAN 3.125000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510050 愛普生有源晶振 SG5032CAN 3.579545 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510052 愛普生有源晶振 SG5032CAN 4.500000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510053 愛普生有源晶振 SG5032CAN 4.800000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510054 愛普生有源晶振 SG5032CAN 4.915200 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510055 愛普生有源晶振 SG5032CAN 5.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510056 愛普生有源晶振 SG5032CAN 5.644800 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510057 愛普生有源晶振 SG5032CAN 6.144000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510058 愛普生有源晶振 SG5032CAN 6.250000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510059 愛普生有源晶振 SG5032CAN 6.500000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510060 愛普生有源晶振 SG5032CAN 6.750000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510061 愛普生有源晶振 SG5032CAN 6.780000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510062 愛普生有源晶振 SG5032CAN 7.159090 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510063 愛普生有源晶振 SG5032CAN 7.372800 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510064 愛普生有源晶振 SG5032CAN 7.500000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510065 愛普生有源晶振 SG5032CAN 8.192000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510066 愛普生有源晶振 SG5032CAN 8.250000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510067 愛普生有源晶振 SG5032CAN 9.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510068 愛普生有源晶振 SG5032CAN 9.600000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510069 愛普生有源晶振 SG5032CAN 9.830400 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510070 愛普生有源晶振 SG5032CAN 11.059200 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510071 愛普生有源晶振 SG5032CAN 13.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510072 愛普生有源晶振 SG5032CAN 13.500000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510073 愛普生有源晶振 SG5032CAN 13.560000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510074 愛普生有源晶振 SG5032CAN 15.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510075 愛普生有源晶振 SG5032CAN 15.360000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510076 愛普生有源晶振 SG5032CAN 15.625000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510077 愛普生有源晶振 SG5032CAN 16.500000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510078 愛普生有源晶振 SG5032CAN 16.650000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510079 愛普生有源晶振 SG5032CAN 16.666500 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510080 愛普生有源晶振 SG5032CAN 18.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510081 愛普生有源晶振 SG5032CAN 19.440000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510082 愛普生有源晶振 SG5032CAN 26.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510083 愛普生有源晶振 SG5032CAN 27.120000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510084 愛普生有源晶振 SG5032CAN 28.636360 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510085 愛普生有源晶振 SG5032CAN 29.491200 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510086 愛普生有源晶振 SG5032CAN 30.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510087 愛普生有源晶振 SG5032CAN 32.768000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510088 愛普生有源晶振 SG5032CAN 36.000000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510089 愛普生有源晶振 SG5032CAN 37.400000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510090 愛普生有源晶振 SG5032CAN 38.400000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

X1G0044510091 愛普生有源晶振 SG5032CAN 49.152000 MHz 5.00 x 3.20 x 1.30 mm CMOS 1.600 to 3.630 V -40 to 85 °C +/-50 ppm

1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 　　何疑問.讓您的消費得到保障。
3.質量保證，誠信為上　　 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 　為您的產品量身訂制,免費取樣,
為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請?zhí)崆昂蜆I(yè)務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.

　深圳市泰河盛電子有限公司
　代理:EPSON,KDS,CITIZEN,SEIKO,ABRACON
　電話:0755-27872782
　手機:13824306246
　郵箱:[email protected]
　Q Q:794113422
　地址:深圳市寶安區40區33號工業城6樓
　網址：http://www.omrb.cn
企業微信

相關產品

国产精品视频一区二区三区不卡_国产精品久久久久久亚洲色_久久夜色精品国产欧美乱_国产露脸精品产三级国产av_亚洲中国精品精华液

泰河盛電子
Dong TaiHe Electronic

進口晶振

晶振最新行情

SG5032CAN-X1G0044510028-CMOS-12MHZ-EPSON-50ppm

相關產品

泰河盛電子

編碼	品牌	型號	進口晶振頻率	尺寸	輸出方式	電源電壓	工作溫度	Freq. Tol./頻率偏差
X1G0044510001	愛普生有源晶振	SG5032CAN	12.288000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510002	愛普生有源晶振	SG5032CAN	16.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510003	愛普生有源晶振	SG5032CAN	24.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510004	愛普生有源晶振	SG5032CAN	25.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510005	愛普生有源晶振	SG5032CAN	27.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510006	愛普生有源晶振	SG5032CAN	33.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510007	愛普生有源晶振	SG5032CAN	48.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510008	愛普生有源晶振	SG5032CAN	50.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510009	愛普生有源晶振	SG5032CAN	54.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510011	愛普生有源晶振	SG5032CAN	20.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm

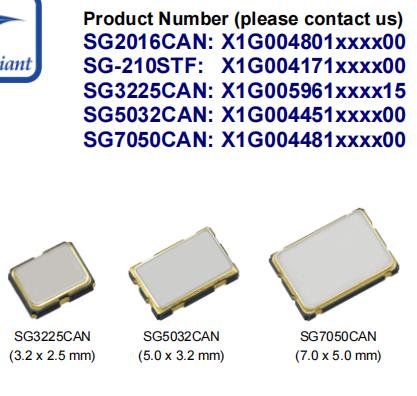

X1G0044510012	愛普生有源晶振	SG5032CAN	40.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510013	愛普生有源晶振	SG5032CAN	10.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510014	愛普生有源晶振	SG5032CAN	32.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510015	愛普生有源晶振	SG5032CAN	16.384000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510016	愛普生有源晶振	SG5032CAN	66.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.710 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510017	愛普生有源晶振	SG5032CAN	1.843200 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510019	愛普生有源晶振	SG5032CAN	14.745600 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510021	愛普生有源晶振	SG5032CAN	8.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510022	愛普生有源晶振	SG5032CAN	33.333000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510023	愛普生有源晶振	SG5032CAN	14.318180 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510026	愛普生有源晶振	SG5032CAN	25.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 105 °C	+/-100 ppm
X1G0044510028	愛普生有源晶振	SG5032CAN	12.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510029	愛普生有源晶振	SG5032CAN	24.576000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510030	愛普生有源晶振	SG5032CAN	28.636300 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510031	愛普生有源晶振	SG5032CAN	27.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-20 to 70 °C	+/-25 ppm
X1G0044510032	愛普生有源晶振	SG5032CAN	4.096000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510033	愛普生有源晶振	SG5032CAN	6.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510034	愛普生有源晶振	SG5032CAN	4.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510035	愛普生有源晶振	SG5032CAN	18.432000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510036	愛普生有源晶振	SG5032CAN	50.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G0044510038	愛普生有源晶振	SG5032CAN	1.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510039	愛普生有源晶振	SG5032CAN	1.200000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510040	愛普生有源晶振	SG5032CAN	1.228800 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510041	愛普生有源晶振	SG5032CAN	1.500000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510042	愛普生有源晶振	SG5032CAN	1.536000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510043	愛普生有源晶振	SG5032CAN	2.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510044	愛普生有源晶振	SG5032CAN	2.048000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510045	愛普生有源晶振	SG5032CAN	2.457600 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510046	愛普生有源晶振	SG5032CAN	2.500000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510047	愛普生有源晶振	SG5032CAN	3.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510048	愛普生有源晶振	SG5032CAN	3.072000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510049	愛普生有源晶振	SG5032CAN	3.125000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510050	愛普生有源晶振	SG5032CAN	3.579545 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510052	愛普生有源晶振	SG5032CAN	4.500000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510053	愛普生有源晶振	SG5032CAN	4.800000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510054	愛普生有源晶振	SG5032CAN	4.915200 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510055	愛普生有源晶振	SG5032CAN	5.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510056	愛普生有源晶振	SG5032CAN	5.644800 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510057	愛普生有源晶振	SG5032CAN	6.144000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510058	愛普生有源晶振	SG5032CAN	6.250000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510059	愛普生有源晶振	SG5032CAN	6.500000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510060	愛普生有源晶振	SG5032CAN	6.750000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510061	愛普生有源晶振	SG5032CAN	6.780000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510062	愛普生有源晶振	SG5032CAN	7.159090 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510063	愛普生有源晶振	SG5032CAN	7.372800 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510064	愛普生有源晶振	SG5032CAN	7.500000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510065	愛普生有源晶振	SG5032CAN	8.192000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510066	愛普生有源晶振	SG5032CAN	8.250000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510067	愛普生有源晶振	SG5032CAN	9.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510068	愛普生有源晶振	SG5032CAN	9.600000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510069	愛普生有源晶振	SG5032CAN	9.830400 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510070	愛普生有源晶振	SG5032CAN	11.059200 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510071	愛普生有源晶振	SG5032CAN	13.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510072	愛普生有源晶振	SG5032CAN	13.500000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510073	愛普生有源晶振	SG5032CAN	13.560000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510074	愛普生有源晶振	SG5032CAN	15.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510075	愛普生有源晶振	SG5032CAN	15.360000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510076	愛普生有源晶振	SG5032CAN	15.625000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510077	愛普生有源晶振	SG5032CAN	16.500000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510078	愛普生有源晶振	SG5032CAN	16.650000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510079	愛普生有源晶振	SG5032CAN	16.666500 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510080	愛普生有源晶振	SG5032CAN	18.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510081	愛普生有源晶振	SG5032CAN	19.440000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510082	愛普生有源晶振	SG5032CAN	26.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510083	愛普生有源晶振	SG5032CAN	27.120000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510084	愛普生有源晶振	SG5032CAN	28.636360 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510085	愛普生有源晶振	SG5032CAN	29.491200 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510086	愛普生有源晶振	SG5032CAN	30.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510087	愛普生有源晶振	SG5032CAN	32.768000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510088	愛普生有源晶振	SG5032CAN	36.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510089	愛普生有源晶振	SG5032CAN	37.400000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510090	愛普生有源晶振	SG5032CAN	38.400000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G0044510091	愛普生有源晶振	SG5032CAN	49.152000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.600 to 3.630 V	-40 to 85 °C	+/-50 ppm

国产精品视频一区二区三区不卡_国产精品久久久久久亚洲色_久久夜色精品国产欧美乱_国产露脸精品产三级国产av_亚洲中国精品精华液

泰河盛電子Dong TaiHe Electronic

進口晶振

晶振最新行情

SG5032CAN-X1G0044510028-CMOS-12MHZ-EPSON-50ppm

相關產品

泰河盛電子

泰河盛電子
Dong TaiHe Electronic
