歐美晶振
- 產品型號：84972631
- 晶振頻率：32.768KHz
- 晶振尺寸：8.0*3.8*2.5mm
- 產品應用： Fortiming晶振,WXP2A進口音叉晶體,無源晶振,WXP2A-32K768-12.5晶振,SMD晶體,陶瓷諧振器,四腳貼片晶振,頻率32.768KHz,負載12.5pF,頻率容差20ppm,工作溫度-40~85°C,抗沖擊晶振,高可靠性晶振,無鉛環保晶振,實時時鐘晶振...
-
WXP2A-32K768-12.5|32.768KHz|12.5pF|Fortiming晶振
WXP2A-32K768-12.5|32.768KHz|12.5pF|Fortiming晶振,Fortiming晶振,WXP2A進口音叉晶體,無源晶振,WXP2A-32K768-12.5晶振,SMD晶體,陶瓷諧振器,四腳貼片晶振,頻率32.768KHz,負載12.5pF,頻率容差20ppm,工作溫度-40~85°C,抗沖擊晶振,高可靠性晶振,無鉛環保晶振,實時時鐘晶振,FPGA/ASIC時鐘生成晶振,數字水表晶振,智能體溫計晶振.
WXP2A-32K768-12.5|32.768KHz|12.5pF|Fortiming晶振特點：
-符合RoHS標準，適用于時間時鐘應用，性能與經濟成本
-微型熱塑性包裝與2.5毫米的高度
-優異的抗沖擊和環境特性
-兼容西鐵城CM200S和愛普生MC-306規范
-符合RoHS標準，適用于時間時鐘應用，性能與經濟成本
-微型熱塑性包裝與2.5毫米的高度
-優異的抗沖擊和環境特性
-兼容西鐵城CM200S和愛普生MC-306規范

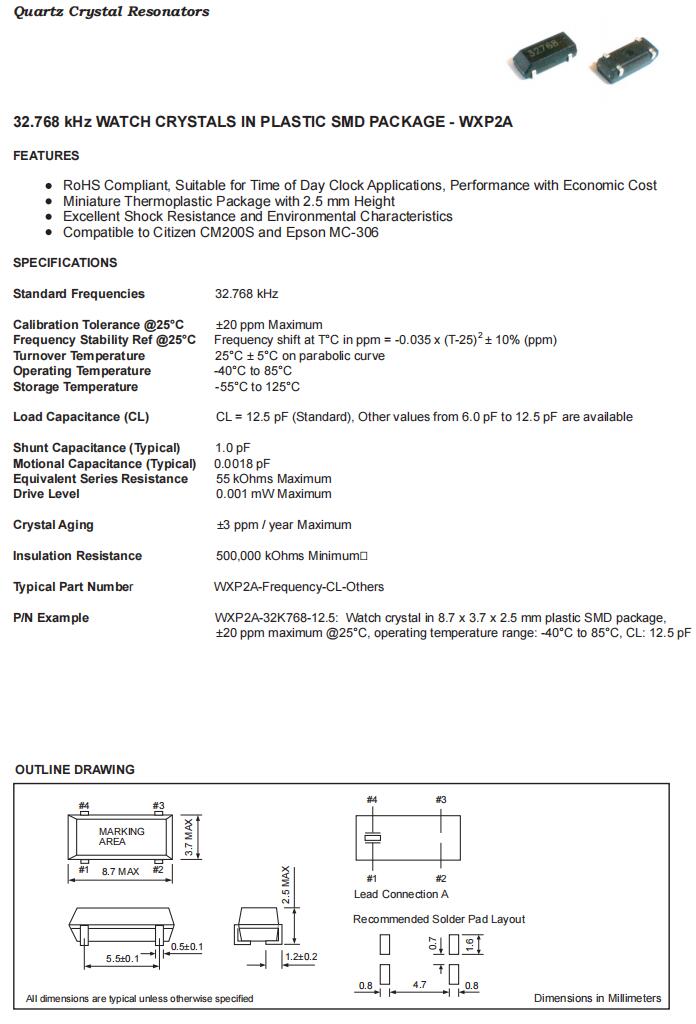

WXP2A-32K768-12.5|32.768KHz|12.5pF|Fortiming晶振規格表
| frequency | 32.768 KHz |
|
Calibration Tolerance @25°C
|
±20 ppm
|
|
Frequency Stability Ref @25°C
|
Frequency shift at T°C in ppm = -0.035 x (T-25) ± 10% (ppm) |
|
Temperature Range
|
-40°C to 85°C
|
|
Crystal Aging
|
±3 ppm / year Maximum
|
| storage temperature range | -55°C~+125℃ |
| load capacitance (CL) | 12.5 pF |
| shunt capacitance | 1.0 pF Typical |
|
Drive Level
|
0.001 mW Maximum
|
|
Equivalent Series Resistance
|
55 kOhms Maximum
|
.jpg)

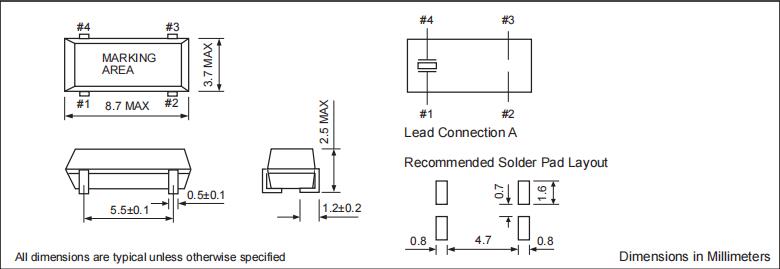

WXP2A-32K768-12.5|32.768KHz|12.5pF|Fortiming晶振尺寸圖
