進口晶振
- 產品型號：30134720
- 晶振頻率：11.0592MHz
- 晶振尺寸：
- 產品應用： AKER晶振,臺灣進口晶振,CAA石英晶振,CAA-11.0592.000-12-1020-X-R晶振,HC-49/U-S晶振,無源晶振,二腳貼片晶振,SMD晶體,頻率11.0592MHz,負載12pF,頻率容差10ppm,工作溫度-40~85°C,高穩定性晶振,高精度晶振,抗沖擊晶振,...
-
CAA-11.0592.000-12-1020-X-R|11.0592MHz|12pF
CAA-11.0592.000-12-1020-X-R|11.0592MHz|12pF,AKER晶振,臺灣進口晶振,CAA石英晶振,CAA-11.0592.000-12-1020-X-R晶振,HC-49/U-S晶振,無源晶振,二腳貼片晶振,SMD晶體,頻率11.0592MHz,負載12pF,頻率容差10ppm,工作溫度-40~85°C,高穩定性晶振,高精度晶振,抗沖擊晶振,音頻系統晶振,家用電視機頂盒晶振,數碼相機晶振,儲存卡晶振.
CAA-11.0592.000-12-1020-X-R|11.0592MHz|12pF特點：
-石英晶體
-表面安裝
-HC-49/U-S SMD短包裝
-產品通用規格
-石英晶體
-表面安裝
-HC-49/U-S SMD短包裝
-產品通用規格

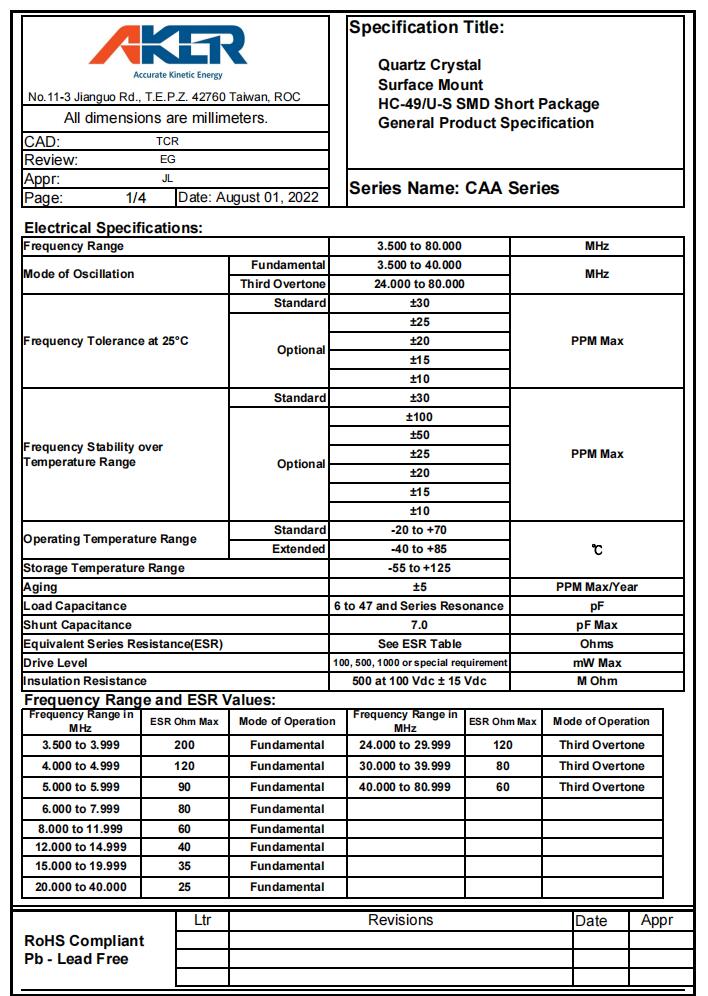

CAA-11.0592.000-12-1020-X-R|11.0592MHz|12pF規格表
| Frequency Range | 11.0592 | MHz | |
| Mode of Oscillation | Fundamental | 3.500 to 40.000 | MHz |
|
Third Overtone
|
24.000to 80.000
|
MHz | |
| Frequency Tolerance at 25°C | Standard | ±30 |
PPM Max (Note 1) |
| Optional | ±25 | ||
| ±20 | |||
| ±15 | |||
| ±10 | |||
| Frequency Stability over Temperature Range | Standard | ±30 |
PPM Max (Note 1) |
| Optional | ±100 | ||
| ±50 | |||
| ±25 | |||
| ±20 | |||
| ±15 | |||
| ±10 | |||
| Operating Temperature Range | Standard | -20 to +70 | °C |
| Extended | -40 to +85 | ||
| Storage Temperature Range | -55 to +125 | ||
| Aging | ±5 | PPM Max/Year | |
| Load Capacitance | 12 | pF | |
| Shunt Capacitance | 7.0 | ||
| Equivalent Series Resistance(ESR) | 60 | Ohm | |
| Drive Level |
100, 500, 1000 or special requirement
|
mW Max | |
| Insulation Resistance | 500 at 100 Vdc± 15Vdc | M Ohm | |
.jpg)

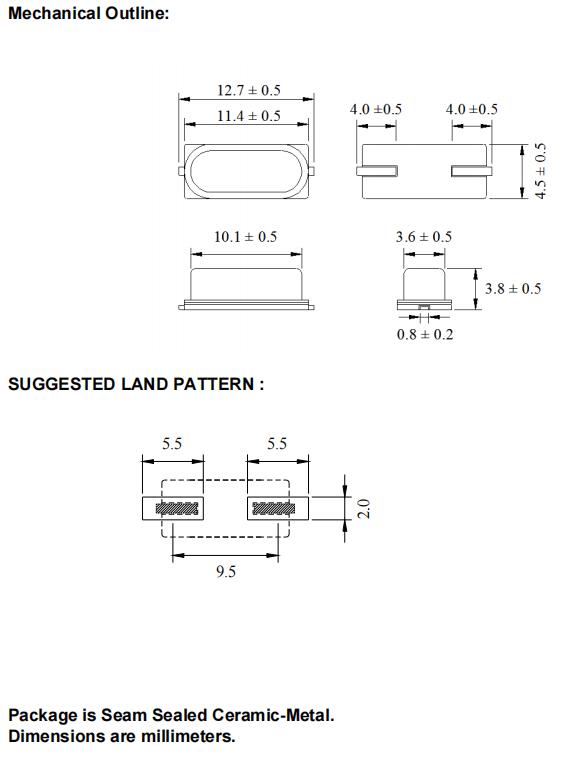

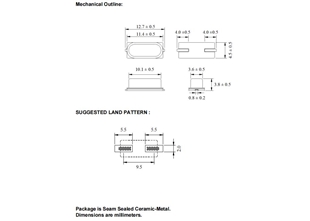

CAA-11.0592.000-12-1020-X-R|11.0592MHz|12pF尺寸圖
