進口晶振
- 產品型號：3460418
- 晶振頻率：26MHz
- 晶振尺寸：
- 產品應用： 臺灣安基晶振,AKER晶振,CA4無源晶振,CA4-26.000-18-2030-X-R晶振,HC-49/U-S晶振,石英晶體諧振器,四腳貼片晶振,SMD晶振,頻率26MHz,負載18pF,頻率容差20ppm,工作溫度-40~85°C,無鉛環保晶振,低老化晶振,高可靠性晶振,投...
-
CA4-26.000-18-2030-X-R|26MHz|18pF|臺灣安基晶振
CA4-26.000-18-2030-X-R|26MHz|18pF|臺灣安基晶振,臺灣安基晶振,AKER晶振,CA4無源晶振,CA4-26.000-18-2030-X-R晶振,HC-49/U-S晶振,石英晶體諧振器,四腳貼片晶振,SMD晶振,頻率26MHz,負載18pF,頻率容差20ppm,工作溫度-40~85°C,無鉛環保晶振,低老化晶振,高可靠性晶振,投影儀專用晶振,智能家居應用晶振,儀器設備專用晶振,電子體重秤晶振.
CA4-26.000-18-2030-X-R|26MHz|18pF|臺灣安基晶振特點：
-石英晶體
-表面安裝
-HC-49/U-S 4Pad包裝
-產品通用規格
-石英晶體
-表面安裝
-HC-49/U-S 4Pad包裝
-產品通用規格

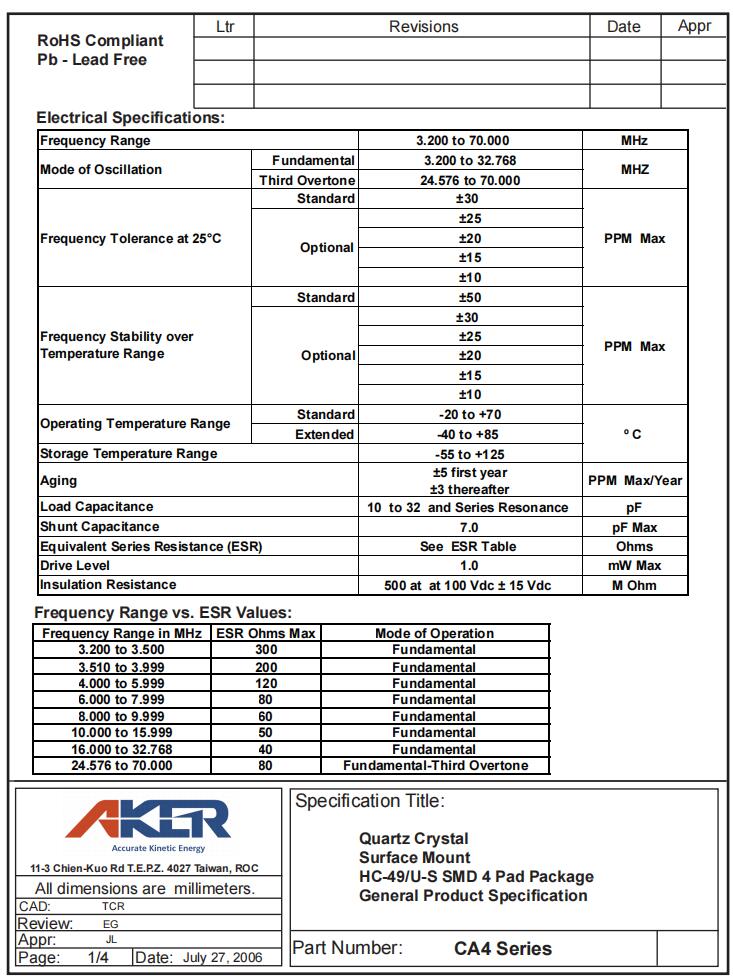

CA4-26.000-18-2030-X-R|26MHz|18pF|臺灣安基晶振規格表
| Frequency Range | 26 | MHz | |
| Mode of Oscillation | Fundamental | 3.200 to 32.768 | MHz |
|
Third Overtone
|
24.576 to 70.000
|
MHz | |
| Frequency Tolerance at 25°C | Standard | ±30 |
PPM Max (Note 1) |
| Optional | ±25 | ||
| ±20 | |||
| ±15 | |||
| ±10 | |||
| Frequency Stability over Temperature Range | Standard | ±50 |
PPM Max (Note 1) |
| Optional | ±30 | ||
| ±25 | |||
| ±20 | |||
| ±15 | |||
| ±10 | |||
| Operating Temperature Range | Standard | -20 to +70 | °C |
| Extended | -40 to +85 | ||
| Storage Temperature Range | -55 to +125 | ||
| Aging |
±5 first year
±3 thereafter
|
PPM Max/Year | |
| Load Capacitance | 18 | pF | |
| Shunt Capacitance | 7.0 | ||
| Equivalent Series Resistance(ESR) | 40 | Ohm | |
| Drive Level |
1.0
|
mW Max | |
| Insulation Resistance | 500 at 100 Vdc± 15Vdc | M Ohm | |
.jpg)

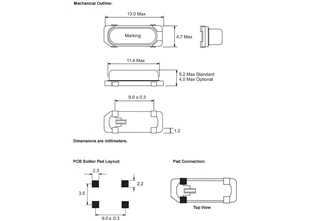

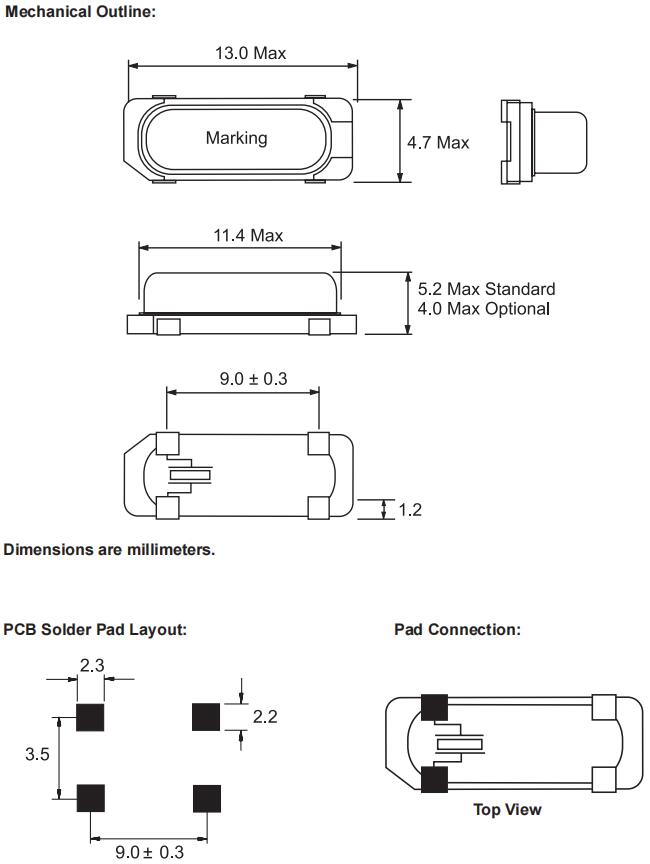

CA4-26.000-18-2030-X-R|26MHz|18pF|臺灣安基晶振尺寸圖
