進口晶振
- 產品型號：77463067
- 晶振頻率：48MHz
- 晶振尺寸：1.6*1.2*0.4mm
- 產品應用： AKER晶振,C16無源晶振,C16-48.000-10-3030-X-R晶振,進口晶振,1612mm晶振,四腳貼片晶振,SMD晶體,石英晶體諧振器,頻率48MHz,負載10pF,頻率容差30ppm,工作溫度-40~85°C,超小型晶振,高穩定性晶振,低老化晶振,便攜式設備晶...
-
C16-48.000-10-3030-X-R|48MHz|10pF|AKER品牌
C16-48.000-10-3030-X-R|48MHz|10pF|AKER品牌,AKER晶振,C16無源晶振,C16-48.000-10-3030-X-R晶振,進口晶振,1612mm晶振,四腳貼片晶振,SMD晶體,石英晶體諧振器,頻率48MHz,負載10pF,頻率容差30ppm,工作溫度-40~85°C,超小型晶振,高穩定性晶振,低老化晶振,便攜式設備晶振,可穿戴設備晶振,無線局域網晶振,通訊設備晶振.
C16-48.000-10-3030-X-R|48MHz|10pF|AKER品牌特點：
-微處理器晶體單元
-低姿態
-1.6 x 1.2毫米表面安裝- 4 Pad
-產品通用規格
-微處理器晶體單元
-低姿態
-1.6 x 1.2毫米表面安裝- 4 Pad
-產品通用規格

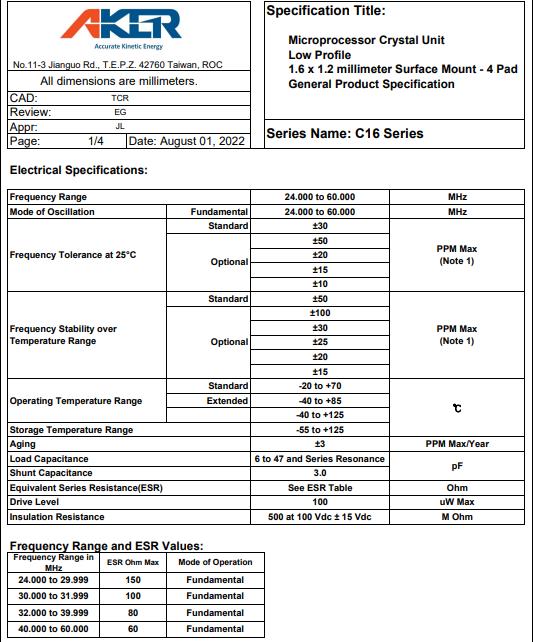

C16-48.000-10-3030-X-R|48MHz|10pF|AKER品牌規格表
| Frequency Range | 48 | MHz | |
| Mode of Oscillation | Fundamental | 24.000 to 60.000 | MHz |
| Frequency Tolerance at 25°C | Standard | ±30 |
PPM Max
(Note 1)
|
| Optional | ±50 | ||
| ±20 | |||
| ±15 | |||
| ±10 | |||
| Frequency Stability over Temperature Range | Standard | ±50 |
PPM Max
(Note 1)
|
| Optional | ±100 | ||
| ±30 | |||
| ±25 | |||
| ±20 | |||
| ±15 | |||
| Operating Temperature Range | Standard | -20 to +70 | °C |
| Extended | -40 to +85 | ||
| -40 to +125 | |||
| Storage Temperature Range | -55 to +125 | ||
| Aging | ±3 | PPM Max/Year | |
| Load Capacitance | 10 | pF | |
| Shunt Capacitance | 7 | ||
| Equivalent Series Resistance(ESR) | 60 | Ohm | |
| Drive Level | 100 | uW Max | |
| Insulation Resistance | 500 at 100 Vdc± 15Vdc | M Ohm | |
.jpg)

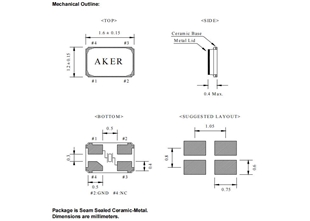

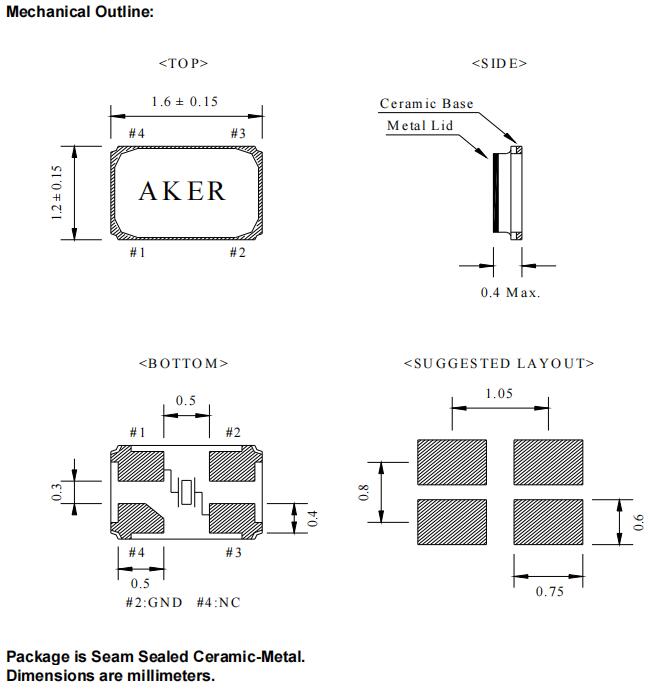

C16-48.000-10-3030-X-R|48MHz|10pF|AKER品牌尺寸圖
