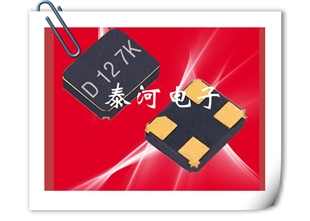

1C255466CC0J,DSX321G,55.46667MHZ,日本KDS晶振,1C255466CC0J,MHZ帶晶體諧振器,四腳貼片晶振.日本KDS進口晶振,SMD晶體諧振器,特點:3225尺寸,小型、薄型、輕量SMD晶振器,耐熱性好,高精度,高可靠性(面向通信用途經年變化也可支持±1×10 - 6/年或±3×10 - 6/5年),支持7.9 ~ 64mhz的低頻到廣泛的頻率,用途:通信器、DVC、DSC、PC等小型設備,藍牙、無線LAN、GPS/GNSS等車載無線及無鑰匙進入;安全裝置、多媒體裝置等車載用途(兼容AEC-Q200),工業設備.

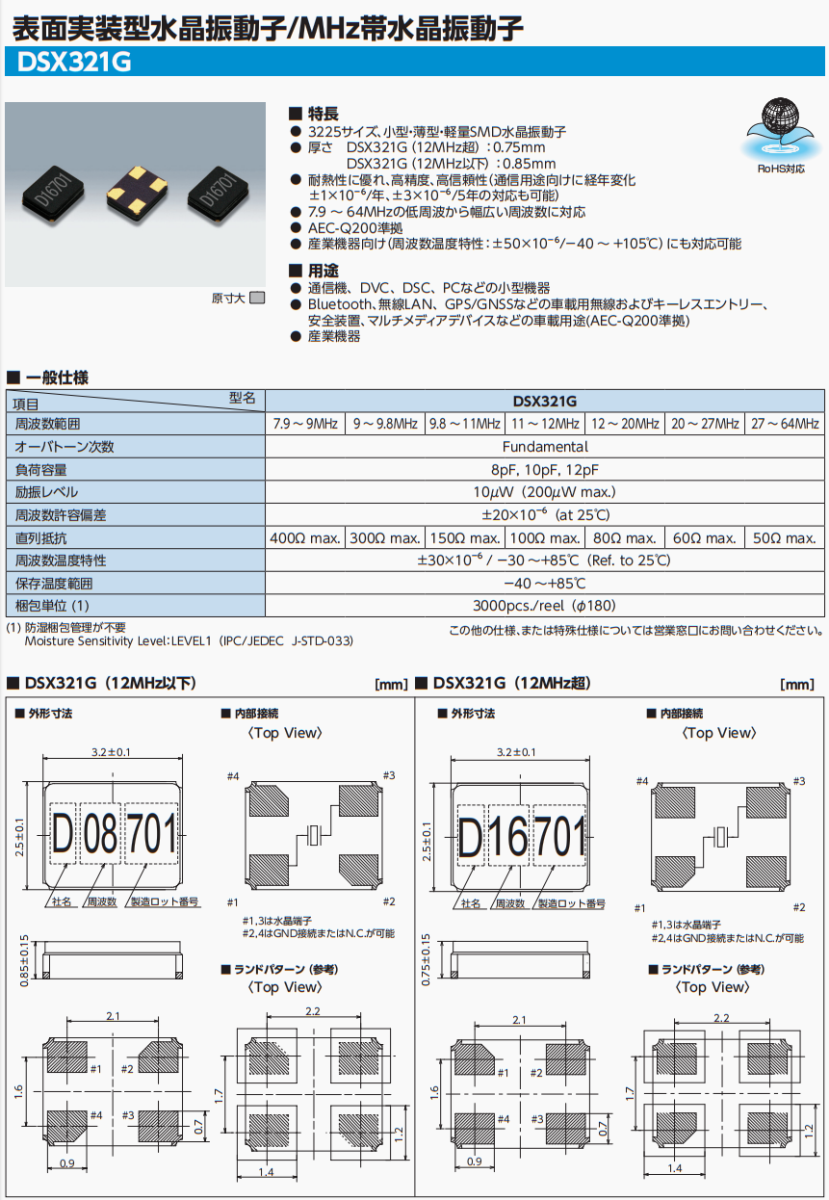

1C255466CC0J,DSX321G,55.46667MHZ,日本KDS晶振
項目/型號 | DSX321G | ||||||
頻率范圍 | 7.9~9MHz | 9 ~9.8MHz | 9.8~11MHz | 11~12MHz | 12~20MHz | 20~27MHz | 27~64MHz |
諧波次數 | Fundamental | ||||||
負載電容 | 8pF, 10pF, 12pF | ||||||
激勵電平 | 10μW(200μW max.) | ||||||
頻率公差 | ±20×10−6 (at 25℃) | ||||||
串聯電阻 | 400Ω max. | 300Ω max. | 150Ω max. | 100Ω max. | 80Ω max. | 60Ω max. | 50Ω max. |
頻率溫度特性 | ±30×10−6 / −30~+85℃(Ref. to 25℃) | ||||||
保存溫度范圍 | −40~+85℃ | ||||||
包裝單位(1) | 3000pcs./reel(φ180) |
1C255466CC0J,DSX321G,55.46667MHZ,日本KDS晶振
品牌 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 |
KDS晶振 | 1TJH125DR1A0004 | DST1610A | 1610 | 32.768KHZ | 12.5PF | 20PPM |
KDS晶振 | TJF080DP1AA003 | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
KDS晶振 | 1TJF080DP1AA003 | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
KDS晶振 | 1TJF0SPDJ1AI00S | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
KDS晶振 | 1TJF080DP1AI00P | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
KDS晶振 | 1TJF090DP1AI007 | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
KDS晶振 | 1TJF0SPDP1AI008 | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
KDS晶振 | 1TJF125DP1AI009 | DST310S | 3215 | 32.768KHZ | 12.5PF | 20PPM |
KDS晶振 | 1TJF090DP1AA00L | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
KDS晶振 | 1TJF080DP1AA00K | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
KDS晶振 | 1TJF0SPDP1AA00G | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
KDS晶振 | 1TJF0SPDN1A000B | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
KDS晶振 | 1TD125DGNS003 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
KDS晶振 | 1TD125DHNS036 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
KDS晶振 | 1TD125DHNS002 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
KDS晶振 | 1TD060DHNS014 | DT-26 | 206 | 32.768KHZ | 6.0PF | 20PPM |
KDS晶振 | 1TD125BHNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
KDS晶振 | 1TD075BHNS001 | DT-26 | 206 | 32.768KHZ | 7.5PF | 10PPM |
KDS晶振 | 1TD125BFNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
KDS晶振 | 1TD1001HNS001 | DT-26 | 206 | 32.768KHZ | 10.0PF | -6/+2PPM |
KDS晶振 | 1TD1250HNS005 | DT-26 | 206 | 32.768KHZ | 12.5PF | 30/40P |
KDS晶振 | 1TC125DFNS030 | DT-38 | 308 | 32.768KHZ | 12.5PF | 20PPM |
KDS晶振 | 1TC125NFNS002 | DT-38 | 308 | 32.768KHZ | 12.5PF | 1000PPM |
KDS晶振 | 1TC125AFSS003 | DT-38 | 308 | 32.768KHZ | 12.5PF | 5PPM |
KDS晶振 | 1TC250E65 | DT-38 | 308 | 32.768KHZ | 12.5PF | +12/+28PPM |
KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000MHZ | 10PF | 10PPM |
KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6MHZ | 10PF | 30PPM |
KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332MHZ | 12PF | 20PPM |
KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000MHZ | 7PF | 10PPM |
KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408MHZ | 16PF | 50PPM |
KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000MHZ | 20PF | 30PPM |
KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000MHZ | 10PF | 20PPM |
KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000MHZ | 11PF | 12PPM |
KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000MHZ | 10PF | 30PPM |
KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000MHZ | 15PF | 15PPM |
KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304MHZ | 3.3V | 50ppm |
KDS晶振 | 1AJ100005B | SMD-49 | 11*4.6 | 10.000MHZ | 12PF | 50PPM |
KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000MHZ | 7PF | 10PPM |
KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 50PPM |
KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576MHZ | 18PF | 30PPM |
KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000MHZ | 3.3V | 50ppm |
KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000MHZ | 12.9PF | 20PPM |
KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400MHZ | 12PF | 50ppm |
KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367MHZ | 3.3V | 1.5ppm |
KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32MHZ | 3.3V | 1.5ppm |
KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367MHZ | 2.8V | 1.5ppm |
KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369MHZ | 3.3V | 1.5ppm |
KDS晶振 | ZC09382 | DSA535SG | 5032 | 18.432MHZ | 3.3V | 1.5ppm |
KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320MHZ | 3.3V | 1.5ppm |
KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000MHZ | 12PF | 15ppm |
KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04MHZ | 3.3V | 1.5ppm |
KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000MHZ | 10PF | 30ppm |
KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000MHZ | 9PF | 10ppm |
KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000MHZ | 8PF | 10ppm |
KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000MHZ | 10PF | 20ppm |
KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6MHZ | 3.3V | 100ppm |
KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000MHZ | 3.3V | 50ppm |
KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000MHZ | 7PF | 20PPM |
KDS晶振 | 1N227000EE0L | DSX321G | 3225 | 27.000MHZ | 9PF | 50ppm |
KDS晶振 | 1ZZCAA27120BB0D | DSX211G | 2016 | 27.12MHZ | 10PF | 20PPM |
KDS晶振 | 1N226000AA0L | DSX321G | 3225 | 26.000MHZ | 7.5pf | 10ppm |
KDS晶振 | 1N226000AA0G | DSX321G | 3225 | 26.000MHZ | 12.5PF | 10ppm |
KDS晶振 | 1RAK38400CKA | DSR211STH | 2016 | 38.4MHZ | 7pf | 12ppm |
KDS晶振 | 7CG03840A06 | DSR1612ATH | 1612 | 38.400MHZ | 8PF | 10ppm |
