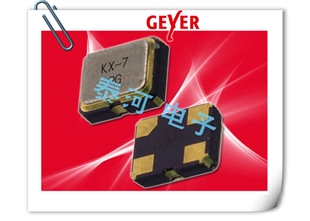

歐美晶振
- 產品型號：2762236
- 晶振頻率：26MHz
- 晶振尺寸：3.2*2.5*0.9mm
- 產品應用： 歐美進口晶振,GEYER CRYSTAL,KX-7E無源晶振,石英諧振器,12.60380晶振,石英晶體,SMD晶振,3225mm晶振,四腳貼片晶振,頻率26MHz,負載15pF,頻率容差10ppm,工作溫度-40~105°C,無鉛環保晶振,高穩定性晶振,高品質晶振,測試與...
-
12.60380|26MHz|15pF|GEYER CRYSTAL
12.60380|26MHz|15pF|GEYER CRYSTAL,歐美進口晶振,GEYER CRYSTAL,KX-7E無源晶振,石英諧振器,12.60380晶振,石英晶體,SMD晶振,3225mm晶振,四腳貼片晶振,頻率26MHz,負載15pF,頻率容差10ppm,工作溫度-40~105°C,無鉛環保晶振,高穩定性晶振,高品質晶振,測試與測量設備晶振,工業自動化晶振,調制解調器晶振,網絡設備晶振.
12.60380|26MHz|15pF|GEYER CRYSTAL規格表
| part no. | 12.60380 |
| model | KX-7E |
| frequency range | 26MHz |
|
mode |
fundamental |
| operating temperature | -40~+105℃ |
| frequency tolerance at +25°C | 土10 ppm |
| temperature tolerance |
土50 ppm
|
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 15 pF |
| shunt capacitance C0 typ. | 3.0 pF |
| series resistance R1 (ESR) max. | 60 Ohm |
| aging at +25°℃ (first year) max. | ±2 ppm |
| drive level | 200 μW max. |
| contents of reel | 1000 pcs. |
.jpg)
12.60380|26MHz|15pF|GEYER CRYSTAL尺寸圖
.jpg)
