歐美晶振

首頁歐美晶振LFXTAL072352REEL|Resonator Crystal

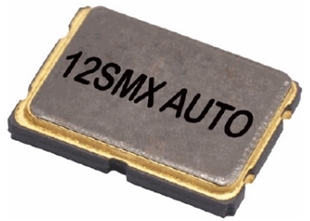

    LFXTAL072352REEL|Resonator Crystal

  • 產品型號：64521847
  • 晶振頻率：8MHz
  • 晶振尺寸：7.0*5.0*1.5mm
  • 產品應用： IQD晶振,12SMX AUTO-B進口石英晶振,LFXTAL072352REEL晶振,無源晶振,7050mm晶振,四腳貼片晶振,SMD晶體,頻率8MHz,負載18pF,頻率穩定性100ppm,工作溫度-40~125°C,低老化晶振,抗沖擊晶振,無鉛環保晶振,高級駕駛輔助系統晶...

LFXTAL072352REEL|Resonator Crystal,IQD晶振,12SMX AUTO-B進口石英晶振,LFXTAL072352REEL晶振,無源晶振,7050mm晶振,四腳貼片晶振,SMD晶體,頻率8MHz,負載18pF,頻率穩定性100ppm,工作溫度-40~125°C,低老化晶振,抗沖擊晶振,無鉛環保晶振,高級駕駛輔助系統晶振,以太網晶振,視頻設備晶振,測試與測量?jī)x器晶振.

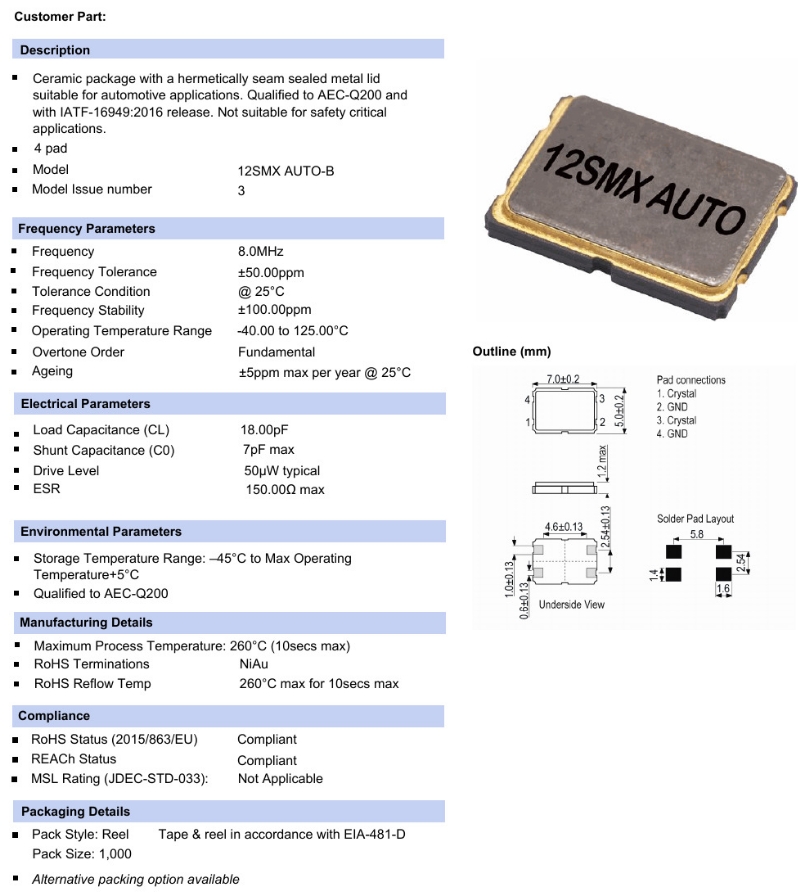

LFXTAL072352REEL|Resonator Crystal規格表

Model Product
12SMX AUTO-B
frequency 8MHz
Frequency Tolerance ±50.00ppm
Tolerance Condition @25°C
Frequency Stability ±100.00ppm
operating temperature range -40 to +125°C
Overtone Order Fundamental
Ageing
±5ppm per year max
Load  Capacitance 18.00pF
Shunt  Capacitance 7pF max
Drive Level 50µW max
ESR 150Ω max
Storage Temperature Range
-45 to 125°C

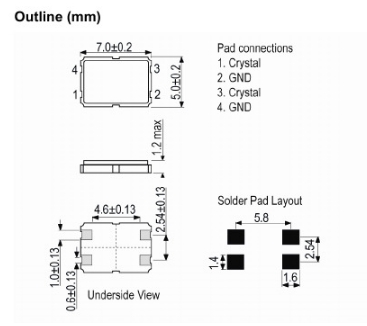

LFXTAL072352REEL|Resonator Crystal尺寸圖

Mfr Part  Series Frequency Frequency Tolerance Load Capacitance ESR  Operating Temperature
LFXTAL003000 85SMX 32.768 kHz ±20ppm 12.5pF 50 kOhms -40°C ~ 85°C
LFXTAL069395RL3K CFPX-218 16.384 MHz ±20ppm 10pF 100 Ohms -40°C ~ 85°C
LFXTAL009678 CFPX-217 32.768 kHz ±20ppm 12.5pF 70 kOhms -40°C ~ 85°C
LFXTAL050789REEL IQXC-25 32.768 kHz ±20ppm 12.5pF 90 kOhms -40°C ~ 85°C
LFXTAL055299REEL CFPX-180 25 MHz ±20ppm 18pF 50 Ohms -40°C ~ 85°C
LFXTAL053099REEL CFPX-180 27.12 MHz ±10ppm 10pF 50 Ohms -20°C ~ 70°C
LFXTAL055663REEL CFPX-104 8 MHz ±20ppm 18pF 150 Ohms -40°C ~ 85°C
LFXTAL026392REEL 12SMX-B 16 MHz ±30ppm 16pF 40 Ohms -20°C ~ 70°C
LFXTAL011301REEL HC49/4HSMX 8 MHz ±30ppm 30pF 40 Ohms -10°C ~ 60°C
LFXTAL029370REEL HC49/4HSMX 16 MHz ±30ppm 18pF 40 Ohms -20°C ~ 70°C
LFXTAL016788REEL HC49/4HSMX 6 MHz ±30ppm 30pF 60 Ohms -10°C ~ 60°C
LFXTAL002995BULK WATCH 32.768 kHz ±20ppm 12.5pF 50 kOhms -40°C ~ 85°C
LFXTAL002997BULK WATCH 32.768 kHz ±20ppm 12.5pF 50 kOhms -40°C ~ 85°C
LFXTAL002996BULK WATCH 32.768 kHz ±15ppm 12.5pF 50 kOhms -40°C ~ 85°C
LFXTAL025159REEL CFPX-56 32.768 kHz ±20ppm 12.5pF 40 kOhms -40°C ~ 85°C
LFXTAL003181REEL HC49/4HSMX 20 MHz ±30ppm 16pF 40 Ohms -10°C ~ 60°C
LFXTAL003166REEL HC49/4HSMX 10 MHz ±30ppm 16pF 40 Ohms -10°C ~ 60°C
LFXTAL029914REEL HC49/4HSMX 8 MHz ±30ppm 16pF 40 Ohms -40°C ~ 85°C
LFXTAL003151REEL HC49/4HSMX 8 MHz ±30ppm 16pF 40 Ohms -10°C ~ 60°C
LFXTAL003237REEL HC49/4HSMX 16 MHz ±30ppm 16pF 40 Ohms -10°C ~ 60°C
LFXTAL014219BULK WATCH 32.768 kHz ±20ppm 6pF 50 kOhms -40°C ~ 85°C
LFXTAL069494REEL IQXC-42 25 MHz ±15ppm 10pF 100 Ohms -40°C ~ 85°C
LFXTAL069383REEL CFPX-218 24 MHz ±20ppm 10pF 100 Ohms -40°C ~ 85°C
LFXTAL035264REEL CFPX-180 16 MHz ±50ppm 16pF 70 Ohms -10°C ~ 60°C
LFXTAL069944REEL CFPX-180 12 MHz ±20ppm 15pF 120 Ohms -40°C ~ 85°C
LFXTAL035268REEL CFPX-180 25 MHz ±50ppm 16pF 50 Ohms -10°C ~ 60°C
LFXTAL056140REEL IQXC-180 AUTO 24 MHz ±50ppm 8pF 50 Ohms -40°C ~ 125°C
LFXTAL069526REEL IQXC-26 32 MHz ±15ppm 8pF 100 Ohms -20°C ~ 70°C
LFXTAL084885 IQXC-217 32.768 kHz ±20ppm 6pF - -
LFXTAL036075BULK HC49/4H 27.12 MHz ±30ppm 10pF 40 Ohms -10°C ~ 60°C
LFXTAL027945BULK HC49/4H 16 MHz ±30ppm 22pF 40 Ohms -10°C ~ 60°C
LFXTAL071268REEL CFPX-218 AUTO 16 MHz ±10ppm 10pF 100 Ohms -40°C ~ 125°C
LFXTAL061627REEL CFPX-104 8 MHz ±20ppm 16pF 150 Ohms -40°C ~ 85°C
LFXTAL055901REEL CFPX-104 8 MHz ±20ppm 18pF 150 Ohms -20°C ~ 70°C
LFXTAL059158REEL CFPX-104 8 MHz ±30ppm 16pF 150 Ohms -40°C ~ 85°C
LFXTAL062558REEL IQXC-25 32.768 kHz ±10ppm 9pF 90 kOhms -40°C ~ 85°C
LFXTAL026384REEL 12SMX-B 12 MHz ±30ppm 16pF 60 Ohms -20°C ~ 70°C
LFXTAL026394REEL 12SMX-B 20 MHz ±30ppm 16pF 40 Ohms -20°C ~ 70°C
LFXTAL056516REEL 12SMX-B 8 MHz ±30ppm 12pF 80 Ohms -20°C ~ 70°C
LFXTAL026380REEL 12SMX-B 8 MHz ±30ppm 16pF 80 Ohms -20°C ~ 70°C
LFXTAL055663BULK CFPX-104 8 MHz ±20ppm 18pF 150 Ohms -40°C ~ 85°C
LFXTAL003033BULK HC49 1.8432 MHz ±20ppm 30pF 800 Ohms -10°C ~ 60°C
LFXTAL020423REEL HC49/4HSMX 8 MHz ±30ppm 18pF 40 Ohms -20°C ~ 70°C
LFXTAL024940REEL HC49/4HSMX 4 MHz ±30ppm 18pF 130 Ohms -20°C ~ 70°C
LFXTAL026900REEL HC49/4HSMX 6 MHz ±20ppm 16pF 60 Ohms -10°C ~ 60°C
LFXTAL030798REEL HC49/4HSMX 3.6864 MHz ±30ppm 16pF 300 Ohms -40°C ~ 85°C
LFXTAL082071RL3K CFPX-180 16 MHz ±10ppm 8pF 70 Ohms -40°C ~ 85°C
LFXTAL082069RL3K CFPX-180 12 MHz ±10ppm 8pF 120 Ohms -40°C ~ 85°C
LFXTAL058637RL3K CFPX-180 25 MHz ±30ppm 12pF 50 Ohms -40°C ~ 85°C
LFXTAL059627REEL IQXC-42 38.4 MHz ±15ppm 10pF 60 Ohms -40°C ~ 85°C
LFXTAL082135CUTT IQXC-42 48 MHz ±10ppm 8pF 60 Ohms -40°C ~ 85°C
LFXTAL063334REEL CFPX-218 25 MHz ±20ppm 10pF 100 Ohms -40°C ~ 85°C
LFXTAL055474REEL CFPX-180 25 MHz ±50ppm 16pF 50 Ohms -40°C ~ 85°C
LFXTAL059648REEL CFPX-180 40 MHz ±20ppm 18pF 35 Ohms -40°C ~ 85°C
LFXTAL072604REEL CFPX-180 25 MHz ±10ppm 8pF 50 Ohms -40°C ~ 85°C
LFXTAL069882REEL CFPX-180 12 MHz ±30ppm 10pF 100 Ohms -40°C ~ 125°C
LFXTAL070065REEL CFPX-180 24 MHz ±10ppm 9pF 50 Ohms -40°C ~ 85°C
LFXTAL055293REEL CFPX-180 14.7456 MHz ±50ppm 18pF 120 Ohms -40°C ~ 85°C
LFXTAL009650REEL CFPX-180 16 MHz ±10ppm 16pF 70 Ohms -40°C ~ 85°C
LFXTAL055295REEL CFPX-180 12 MHz ±20ppm 18pF 120 Ohms -40°C ~ 85°C
LFXTAL082076REEL CFPX-180 32 MHz ±10ppm 8pF 40 Ohms -40°C ~ 85°C
LFXTAL057997REEL CFPX-180 16 MHz ±10ppm 10pF 70 Ohms -40°C ~ 85°C
LFXTAL056346REEL CFPX-180 12 MHz ±30ppm 18pF 120 Ohms -40°C ~ 85°C
LFXTAL057623REEL IQXC-180 AUTO 24 MHz ±30ppm 8pF 50 Ohms -40°C ~ 85°C
LFXTAL071744REEL IQXC-180 AUTO 16 MHz ±30ppm 8pF 80 Ohms -40°C ~ 85°C
LFXTAL083138RL3K CFPX-180 8 MHz ±30ppm 12pF 500 Ohms -40°C ~ 85°C
LFXTAL073664REEL IQXC-180 AUTO 12 MHz ±50ppm 8pF 200 Ohms -40°C ~ 125°C
LFXTAL069528REEL IQXC-26 48 MHz ±15ppm 8pF 100 Ohms -20°C ~ 70°C
LFXTAL081609CUTT IQXC-26 25 MHz ±10ppm 8pF 200 Ohms -40°C ~ 85°C
LFXTAL069527REEL IQXC-26 40 MHz ±15ppm 8pF 100 Ohms -20°C ~ 70°C
LFXTAL024944BULK HC49/4H 16 MHz ±30ppm 18pF 40 Ohms -20°C ~ 70°C
LFXTAL030819REEL CFPX-104 16 MHz ±50ppm 18pF 50 Ohms -10°C ~ 60°C
LFXTAL059530REEL CFPX-104 24 MHz ±20ppm 18pF 40 Ohms -40°C ~ 85°C
LFXTAL061633REEL CFPX-104 13.56 MHz ±20ppm 16pF 70 Ohms -40°C ~ 85°C
LFXTAL055999REEL CFPX-104 12 MHz ±30ppm 18pF 70 Ohms -40°C ~ 85°C
LFXTAL033075REEL CFPX-104 25 MHz ±50ppm 18pF 40 Ohms -10°C ~ 60°C
LFXTAL059532REEL CFPX-104 25 MHz ±20ppm 18pF 40 Ohms -40°C ~ 85°C
LFXTAL056556REEL CFPX-104 12.5 MHz ±50ppm 18pF 70 Ohms -40°C ~ 85°C
LFXTAL059528REEL CFPX-104 16.384 MHz ±20ppm 18pF 50 Ohms -40°C ~ 85°C
LFXTAL050518REEL CFPX-104 12 MHz ±30ppm 12pF 90 Ohms -40°C ~ 85°C
LFXTAL036900BULK HC49/4H 4 MHz ±10ppm 30pF 130 Ohms -40°C ~ 85°C
LFXTAL003320BULK HC49 24 MHz ±20ppm Series 35 Ohms -10°C ~ 60°C
LFXTAL071259REEL IQXC-42 AUTO 25 MHz ±10ppm 10pF 100 Ohms -40°C ~ 125°C
LFXTAL061486REEL CFPX-104 8.192 MHz ±30ppm 10pF 150 Ohms -40°C ~ 85°C
LFXTAL026388REEL 12SMX-B 14.7456 MHz ±30ppm 16pF 60 Ohms -20°C ~ 70°C
LFXTAL072351REEL 12SMX AUTO 6 MHz ±50ppm 18pF 150 Ohms -40°C ~ 125°C
LFXTAL072352REEL 12SMX AUTO 8 MHz ±50ppm 18pF 150 Ohms -40°C ~ 125°C
LFXTAL059461REEL IQXC-25 32.768 kHz ±20ppm 7pF 90 kOhms -40°C ~ 85°C
LFXTAL011164BULK HC49 3.072 MHz ±20ppm 20pF 150 Ohms -10°C ~ 60°C
LFXTAL036356REEL HC49/4HSMX 12 MHz ±20ppm 18pF 40 Ohms -20°C ~ 70°C
LFXTAL058149RL3K CFPX-180 24 MHz ±10ppm 10pF 50 Ohms -20°C ~ 70°C
LFXTAL083409RL3K CFPX-180 26 MHz ±10ppm 12pF 50 Ohms -40°C ~ 105°C
LFXTAL078781RL3K CFPX-180 16 MHz ±30ppm 12pF 70 Ohms -40°C ~ 125°C
LFXTAL083407RL3K CFPX-180 24 MHz ±20ppm 12pF 50 Ohms -40°C ~ 105°C
LFXTAL036401REEL CFPX-104 12 MHz ±20ppm 18pF 90 Ohms -20°C ~ 70°C
LFXTAL071266REEL IQXC-42 AUTO 48 MHz ±10ppm 10pF 60 Ohms -40°C ~ 125°C
LFXTAL066198REEL IQXC-90 32.768 kHz ±20ppm 9pF 90 kOhms -40°C ~ 85°C
LFXTAL085880 CFPX-180 25 MHz ±20ppm 8pF 40 Ohms -40°C ~ 125°C
LFXTAL085874 CFPX-180 20 MHz ±20ppm 12pF 50 Ohms -40°C ~ 125°C
LFXTAL085878 CFPX-180 24 MHz ±20ppm 12pF 50 Ohms -40°C ~ 125°C
LFXTAL085860 CFPX-180 12 MHz ±20ppm 12pF 100 Ohms -40°C ~ 125°C
LFXTAL085887 CFPX-180 32 MHz ±10ppm 8pF 40 Ohms -40°C ~ 125°C
LFXTAL009709 CFPX-217 32.768 kHz ±20ppm 7pF 70 kOhms -40°C ~ 85°C
LFXTAL085881 CFPX-180 25 MHz ±20ppm 12pF 40 Ohms -40°C ~ 125°C
LFXTAL085871 CFPX-180 16 MHz ±20ppm 8pF 70 Ohms -40°C ~ 125°C
LFXTAL085845 IQXC-42 25 MHz ±10ppm 8pF 100 Ohms -40°C ~ 125°C
LFXTAL085842 IQXC-42 16 MHz ±10ppm 8pF 150 Ohms -40°C ~ 125°C
LFXTAL085857 IQXC-42 40 MHz ±10ppm 10pF 60 Ohms -40°C ~ 125°C
LFXTAL084882 IQXC-217 32.768 kHz ±20ppm 12.5pF - -
LFXTAL084884 IQXC-217 32.768 kHz ±20ppm 7pF - -
LFXTAL084883 IQXC-217 32.768 kHz ±20ppm 9pF - -
LFXTAL034654REEL HC49/4HSMX 4 MHz ±20ppm 18pF 130 Ohms -20°C ~ 70°C
LFXTAL028392REEL HC49/4HSMX 4.9152 MHz ±30ppm 18pF 130 Ohms -20°C ~ 70°C
LFXTAL011300REEL HC49/4HSMX 4 MHz ±30ppm 30pF 130 Ohms -10°C ~ 60°C
LFXTAL017145REEL HC49/4HSMX 10 MHz ±30ppm 30pF 40 Ohms -10°C ~ 60°C
LFXTAL017146REEL HC49/4HSMX 20 MHz ±30ppm 30pF 40 Ohms -10°C ~ 60°C
LFXTAL051755REEL HC49/4HSMX 18.432 MHz ±30ppm 16pF 40 Ohms -40°C ~ 85°C
LFXTAL033580REEL HC49/4HSMX 12 MHz ±30ppm 18pF 40 Ohms -20°C ~ 70°C
LFXTAL033575REEL HC49/4HSMX 7.3728 MHz ±30ppm 18pF 60 Ohms -20°C ~ 70°C
LFXTAL020131REEL HC49/4HSMX 20 MHz ±30ppm 18pF 40 Ohms -20°C ~ 70°C
LFXTAL015055REEL HC49/4HSMX 16 MHz ±30ppm 20pF 40 Ohms -10°C ~ 60°C
LFXTAL003058REEL HC49/4HSMX 3.579545 MHz ±30ppm 16pF 300 Ohms -10°C ~ 60°C
LFXTAL015023REEL HC49/4HSMX 18.432 MHz ±30ppm 30pF 40 Ohms -20°C ~ 70°C
LFXTAL003260REEL HC49/4HSMX 3.6864 MHz ±30ppm 16pF 300 Ohms -10°C ~ 60°C
LFXTAL016178 85SMX 32.768 kHz ±20ppm 6pF 50 kOhms -40°C ~ 85°C
LFXTAL003210REEL HC49/4HSMX 12 MHz ±30ppm 16pF 40 Ohms -10°C ~ 60°C
LFXTAL010595REEL HC49/4HSMX 25 MHz ±30ppm 16pF 40 Ohms -10°C ~ 60°C
LFXTAL003519REEL HC49/4HSMX 11.0592 MHz ±30ppm 16pF 40 Ohms -10°C ~ 60°C
LFXTAL035293REEL HC49/4HSMX 12 MHz ±30ppm 16pF 40 Ohms -40°C ~ 85°C
LFXTAL028430REEL HC49/4HSMX 3.2768 MHz ±30ppm 18pF 300 Ohms -20°C ~ 70°C
LFXTAL003071REEL HC49/4HSMX 4 MHz ±30ppm 16pF 130 Ohms -10°C ~ 60°C
LFXTAL018153REEL HC49/4HSMX 4.9152 MHz ±30ppm 16pF 130 Ohms -10°C ~ 60°C
LFXTAL026908REEL HC49/4HSMX 14.7456 MHz ±20ppm 16pF 40 Ohms -10°C ~ 60°C
LFXTAL036034REEL HC49/4HSMX 16 MHz ±30ppm 16pF 40 Ohms -40°C ~ 85°C
LFXTAL026902REEL HC49/4HSMX 8.192 MHz ±20ppm 16pF 40 Ohms -10°C ~ 60°C
LFXTAL003334REEL HC49/4HSMX 7.3728 MHz ±30ppm 16pF 60 Ohms -10°C ~ 60°C
LFXTAL026911REEL HC49/4HSMX 18.432 MHz ±20ppm 16pF 40 Ohms -10°C ~ 60°C
LFXTAL054555REEL HC49/4HSMX 25 MHz ±20ppm 20pF 40 Ohms -40°C ~ 85°C
LFXTAL009706 CFPX-217 32.768 kHz ±20ppm 9pF 70 kOhms -40°C ~ 85°C
LFXTAL054236 CFPX-217 32.768 kHz ±20ppm 6pF 70 kOhms -40°C ~ 85°C
LFXTAL082887RL3K IQXC-42 16 MHz ±10ppm 10pF 200 Ohms -40°C ~ 105°C
LFXTAL085851 IQXC-42 32 MHz ±10ppm 10pF 80 Ohms -40°C ~ 125°C
LFXTAL069493REEL IQXC-42 24 MHz ±15ppm 10pF 100 Ohms -40°C ~ 85°C
LFXTAL082129CUTT IQXC-42 32 MHz ±10ppm 8pF 80 Ohms -40°C ~ 85°C
LFXTAL073170REEL IQXC-42 32 MHz ±10ppm 10pF 60 Ohms -40°C ~ 85°C
LFXTAL085841 IQXC-42 20 MHz ±15ppm 10pF 100 Ohms -40°C ~ 125°C
LFXTAL085844 IQXC-42 24 MHz ±20ppm 10pF 100 Ohms -40°C ~ 125°C
LFXTAL085849 IQXC-42 27.12 MHz ±10ppm 10pF 100 Ohms -40°C ~ 125°C
LFXTAL069405REEL CFPX-218 27 MHz ±20ppm 18pF 100 Ohms -40°C ~ 85°C
LFXTAL069392REEL CFPX-218 16 MHz ±20ppm 10pF 100 Ohms -40°C ~ 85°C
LFXTAL059611RL3K CFPX-180 13.56 MHz ±20ppm 18pF 120 Ohms -40°C ~ 85°C
LFXTAL054208RL3K CFPX-180 12 MHz ±10ppm 10pF 120 Ohms -20°C ~ 70°C
LFXTAL035265REEL CFPX-180 20 MHz ±50ppm 16pF 50 Ohms -10°C ~ 60°C
LFXTAL068297REEL CFPX-218 16 MHz ±10ppm 8pF 100 Ohms -20°C ~ 75°C
LFXTAL070868REEL CFPX-180 12 MHz ±10ppm 18pF 120 Ohms -40°C ~ 85°C
LFXTAL055951REEL CFPX-180 16 MHz ±30ppm 18pF 70 Ohms -40°C ~ 85°C
LFXTAL035266REEL CFPX-180 24 MHz ±50ppm 16pF 50 Ohms -10°C ~ 60°C
LFXTAL063321REEL CFPX-180 25 MHz ±50ppm 18pF 50 Ohms -40°C ~ 85°C
LFXTAL059643REEL CFPX-180 26 MHz ±20ppm 18pF 50 Ohms -40°C ~ 85°C
LFXTAL059815REEL CFPX-180 27.12 MHz ±50ppm 10pF 50 Ohms -40°C ~ 85°C
LFXTAL053866REEL CFPX-180 48 MHz ±20ppm 18pF 35 Ohms -40°C ~ 85°C
LFXTAL058124REEL CFPX-180 24 MHz ±20ppm 18pF 50 Ohms -40°C ~ 85°C
LFXTAL051068REEL CFPX-180 25 MHz ±50ppm 9pF 50 Ohms -20°C ~ 70°C
LFXTAL055962REEL CFPX-180 30 MHz ±10ppm 12pF 40 Ohms -10°C ~ 60°C
LFXTAL071177REEL CFPX-180 24 MHz ±10ppm 9pF 40 Ohms -40°C ~ 85°C
LFXTAL083408RL3K CFPX-180 25 MHz ±20ppm 12pF 50 Ohms -40°C ~ 105°C
LFXTAL083388RL3K CFPX-180 12 MHz ±20ppm 12pF 120 Ohms -40°C ~ 105°C
LFXTAL083387RL3K CFPX-180 10 MHz ±20ppm 12pF 200 Ohms -40°C ~ 105°C
LFXTAL071774REEL IQXC-180 AUTO 12 MHz ±50ppm 8pF 200 Ohms -40°C ~ 85°C
LFXTAL071758REEL IQXC-180 AUTO 25 MHz ±30ppm 8pF 50 Ohms -40°C ~ 85°C
LFXTAL071747REEL IQXC-180 AUTO 16.384 MHz ±30ppm 8pF 80 Ohms -40°C ~ 85°C
LFXTAL071750REEL IQXC-180 AUTO 20 MHz ±30ppm 8pF 60 Ohms -40°C ~ 85°C
LFXTAL053426REEL IQXC-180 AUTO 16 MHz ±50ppm 8pF 80 Ohms -40°C ~ 125°C
LFXTAL055998REEL IQXC-180 AUTO 20 MHz ±50ppm 8pF 60 Ohms -40°C ~ 125°C
LFXTAL071785REEL IQXC-180 AUTO 25 MHz ±50ppm 8pF 50 Ohms -40°C ~ 125°C
LFXTAL066834 CFPX-217 32.768 kHz ±10ppm 12.5pF 50 kOhms -40°C ~ 85°C
LFXTAL071270REEL CFPX-218 AUTO 25 MHz ±10ppm 10pF 100 Ohms -40°C ~ 125°C
LFXTAL069277REEL CFPX-104 8 MHz ±20ppm 20pF 150 Ohms -40°C ~ 85°C
LFXTAL059531REEL CFPX-104 24.576 MHz ±20ppm 18pF 40 Ohms -40°C ~ 85°C
LFXTAL033645REEL CFPX-104 40 MHz ±50ppm 18pF 100 Ohms -10°C ~ 60°C
LFXTAL056583REEL CFPX-104 10 MHz ±30ppm 12pF 150 Ohms -40°C ~ 85°C
LFXTAL061642REEL CFPX-104 25 MHz ±20ppm 16pF 40 Ohms -40°C ~ 85°C
LFXTAL032817REEL CFPX-104 24 MHz ±50ppm 18pF 40 Ohms -10°C ~ 60°C
LFXTAL072402REEL CFPX-104 10 MHz ±20ppm 18pF 90 Ohms -40°C ~ 85°C
LFXTAL059523REEL CFPX-104 12.288 MHz ±20ppm 18pF 70 Ohms -40°C ~ 85°C
LFXTAL071255REEL IQXC-42 AUTO 16 MHz ±10ppm 10pF - -40°C ~ 125°C
LFXTAL071262REEL IQXC-42 AUTO 32 MHz ±10ppm 10pF 80 Ohms -40°C ~ 125°C
LFXTAL026382REEL 12SMX-B 11.0592 MHz ±30ppm 16pF 60 Ohms -20°C ~ 70°C
LFXTAL065253REEL IQXC-90 32.768 kHz ±20ppm 12.5pF 90 kOhms -40°C ~ 85°C
LFXTAL051643REEL IQXC-25 32.768 kHz ±20ppm 9pF 90 kOhms -40°C ~ 85°C
LFXTAL066431REEL IQXC-90 32.768 kHz ±20ppm 7pF 90 kOhms -40°C ~ 85°C
LFXTAL003523BULK HC49/4H 11.0592 MHz ±30ppm 30pF 40 Ohms -20°C ~ 70°C
LFXTAL003185BULK HC49/4H 20 MHz ±30ppm 12pF 40 Ohms -20°C ~ 70°C
LFXTAL024901BULK HC49/4H 25 MHz ±30ppm 22pF 40 Ohms -10°C ~ 60°C
LFXTAL003102BULK HC49/4H 4.433619 MHz ±30ppm 20pF 130 Ohms -10°C ~ 60°C
LFXTAL003240BULK HC49/4H 16 MHz ±30ppm 30pF 40 Ohms -20°C ~ 70°C
LFXTAL003074BULK HC49/4H 4 MHz ±20ppm 30pF 130 Ohms -10°C ~ 60°C
LFXTAL003156BULK HC49/4H 8 MHz ±30ppm 30pF 40 Ohms -20°C ~ 70°C
LFXTAL024985BULK HC49/4H 3.2768 MHz ±30ppm 12pF 300 Ohms -10°C ~ 60°C
LFXTAL003132BULK HC49/4H 6 MHz ±30ppm 30pF 60 Ohms -10°C ~ 60°C
LFXTAL010689REEL HC49/4HSMX 7.3728 MHz ±30ppm 30pF 60 Ohms -10°C ~ 60°C
LFXTAL012504REEL HC49/4HSMX 24 MHz ±30ppm 16pF 40 Ohms -10°C ~ 60°C
LFXTAL058383BULK HC49/4H 16 MHz ±30ppm 20pF 40 Ohms -40°C ~ 85°C
LFXTAL031736BULK HC49/4H 12 MHz ±30ppm 20pF 40 Ohms -20°C ~ 70°C
LFXTAL003169BULK HC49/4H 10 MHz ±30ppm 30pF 40 Ohms -20°C ~ 70°C
LFXTAL003119BULK HC49/4H 5 MHz ±30ppm 30pF 130 Ohms -10°C ~ 60°C
LFXTAL003286BULK HC49/4H 12.288 MHz ±30ppm 30pF 40 Ohms -10°C ~ 60°C
LFXTAL003063BULK HC49/4H 3.579545 MHz ±30ppm 20pF 300 Ohms -20°C ~ 70°C
LFXTAL003176BULK HC49/4H 18.432 MHz ±30ppm 30pF 40 Ohms -20°C ~ 70°C
LFXTAL003336BULK HC49/4H 7.3728 MHz ±15ppm 18pF 60 Ohms -10°C ~ 60°C
LFXTAL003137BULK HC49/4H 6.144 MHz ±30ppm 30pF 60 Ohms -10°C ~ 60°C
LFXTAL003279BULK HC49/4H 9.8304 MHz ±30ppm 30pF 40 Ohms -10°C ~ 60°C
LFXTAL003224BULK HC49/4H 14.7456 MHz ±30ppm 30pF 40 Ohms -10°C ~ 60°C
LFXTAL003115BULK HC49/4H 4.9152 MHz ±30ppm 30pF 130 Ohms -20°C ~ 70°C
LFXTAL003335BULK HC49/4H 7.3728 MHz ±30ppm 30pF 60 Ohms -10°C ~ 60°C
LFXTAL003215BULK HC49/4H 12 MHz ±30ppm 30pF 40 Ohms -20°C ~ 70°C
LFXTAL003325BULK HC49/4H 24 MHz ±30ppm 30pF 40 Ohms -10°C ~ 60°C
LFXTAL027298BULK HC49/4H 4 MHz ±30ppm 18pF 130 Ohms -20°C ~ 70°C
LFXTAL078424BULK HC49/3.5H 16 MHz ±30ppm 20pF 40 Ohms -10°C ~ 70°C
LFXTAL078432BULK HC49/3.5H 16 MHz ±50ppm 20pF 40 Ohms -20°C ~ 70°C
LFXTAL036183BULK HC49/4H 8 MHz ±15ppm 30pF 40 Ohms -40°C ~ 85°C
LFXTAL063075BULK HC49/4HSMX 17.2032 MHz ±30ppm 22pF 40 Ohms -40°C ~ 85°C
LFXTAL078431BULK HC49/3.5H 8 MHz ±30ppm 20pF 40 Ohms -55°C ~ 125°C
LFXTAL003231BULK HC49 16 MHz ±20ppm 30pF 35 Ohms -10°C ~ 60°C
LFXTAL003134BULK HC49 6.144 MHz ±20ppm 30pF 100 Ohms -10°C ~ 60°C
LFXTAL003277BULK HC49 9.8304 MHz ±20ppm 30pF 50 Ohms -10°C ~ 60°C


1.技術支持                        2.客服咨詢
全方位技術指導,專業的技術支持讓您感受       專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂.               　　何疑問.讓您的消費得到保障。
3.質量保證，誠信為上             　　 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念.    　為您的產品量身訂制,免費取樣,
                       　　　　　　為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請?zhí)崆昂蜆I(yè)務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.

　深 圳 市 泰 河 電 子 有 限 公 司
　代理:EPSON,KDS,CITIZEN,SEIKO
　電話:0755-27872782
　手機:13824306246
　郵箱:taiheth@163.com
　Q Q:794113422
　地址:深圳市寶安區40區33號工業城6樓
　網址：http://www.omrb.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!

微信:taihekj      QQ:794113422

相關產品

客服

泰河盛電子

在線咨詢
close

咨詢熱線

0755-27872782

泰河微信號
泰河公眾號
少妇人妻精品一区二区三区| 无码视频一区二区三区| 成人做爰免费视频免费看| 国产亚洲精品资源在线26u| 日本熟妇人妻xxxxx-欢迎您| 天堂8中文在线最新版在线| 波多野结衣美乳人妻hd电影欧美| 成熟妇人a片免费看网站| 国产av无码专区亚洲av琪琪| 国产黄大片在线观看画质优化| 超碰色偷偷男人的天堂| 国内精品伊人久久久久影院对白| 免费国产黄网站在线观看可以下载| 高潮毛片又色又爽免费| 真人一进一出120秒试看| 6699嫩草久久久精品影院| 亚洲av成人一区二区三区观看| 国产成+人+综合+亚洲欧美丁香花| 国产成人午夜高潮毛片| 日本电影一区二区三区| 蜜芽国产尤物av尤物在线看| 2020无码专区人妻系列日韩| 人人妻人人澡人人爽欧美一区九九| 大肉大捧一进一出好爽视频mba| 无码精品人妻一区二区三区免费看| 亚洲色成人一区二区三区小说| 国产三级久久久精品麻豆三级| 99久久精品午夜一区二区| 午夜免费视频| 又爽又黄又无遮挡的视频| 少妇人妻大乳在线视频| h漫全彩纯肉无码网站| 国产精品久久久久久麻豆一区| 中文在线8资源库| 少妇无码一区二区三区免费| 久久久无码精品亚洲日韩按摩| 久久人人爽人人爽人人片亞洲| 亚洲精品无码成人aaa片| 性色av闺蜜一区二区三区| 色视频综合无码一区二区三区| 日本丰满老妇bbw|
