歐美晶振

首頁歐美晶振LFXTAL071747REEL|Resonator Crystal

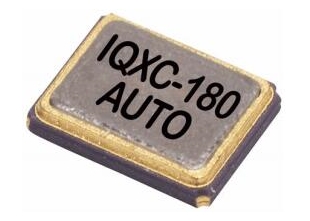

    LFXTAL071747REEL|Resonator Crystal

  • 產品型號：18743154
  • 晶振頻率：16.384MHz
  • 晶振尺寸：3.2*2.5*0.9mm
  • 產品應用： 歐美晶振,IQD晶振,IQXC-180AUTO進口晶振,LFXTAL071747REEL晶振,石英晶體,四腳貼片晶振,晶體諧振器,無源晶振,3225mm晶振,頻率16.384MHz,負載8pF,頻率容差30ppm,工作溫度-40~85°C,小體積晶振,耐高溫晶振,抗沖擊晶振,GP...

LFXTAL071747REEL|Resonator Crystal,歐美晶振,IQD晶振,IQXC-180AUTO進口晶振,LFXTAL071747REEL晶振,石英晶體,四腳貼片晶振,晶體諧振器,無源晶振,3225mm晶振,頻率16.384MHz,負載8pF,頻率容差30ppm,工作溫度-40~85°C,小體積晶振,耐高溫晶振,抗沖擊晶振,GPS導航設備晶振,信息娛樂系統晶振,環繞視圖攝像頭晶振,汽車音響控制器晶振.
LFXTAL071747REEL|Resonator Crystal特點：
-帶有密封金屬蓋的陶瓷包裝，適用于汽車應用
-通過AEC-Q200認證，并可獲得IATF-16949:2016版本
-不適合安全關鍵應用

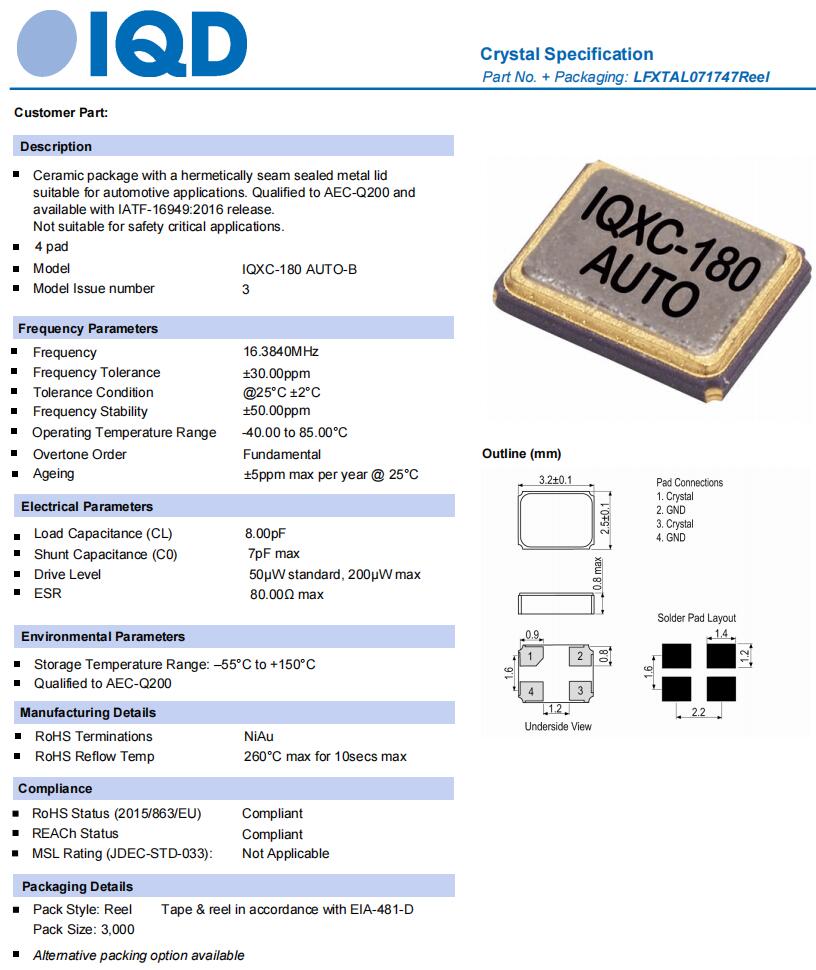

LFXTAL071747REEL|Resonator Crystal規格表

Model Product
IQXC-180AUTO
frequency 16.384MHz
Frequency Tolerance ±30.00ppm
Tolerance Condition
@ 25°C±2°C
Frequency Stability
 ±50.00ppm
operating temperature range -40 to +85°C
Ageing
±5ppm typical per year@25°C
Load  Capacitance 8pF
Shunt  Capacitance 7pF max
Drive Level 50µW standard, 200µW max
ESR 80Ω max
Storage Temperature Range
-55 to 125°C

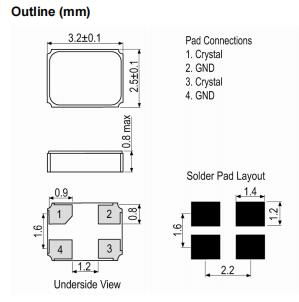

LFXTAL071747REEL|Resonator Crystal尺寸圖

Mfr Part  Series Frequency Frequency Tolerance Load Capacitance Operating Temperature
LFXTAL003000 85SMX 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
LFXTAL069395RL3K CFPX-218 16.384 MHz ±20ppm 10pF -40°C ~ 85°C
LFXTAL009678 CFPX-217 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
LFXTAL050789REEL IQXC-25 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
LFXTAL055299REEL CFPX-180 25 MHz ±20ppm 18pF -40°C ~ 85°C
LFXTAL053099REEL CFPX-180 27.12 MHz ±10ppm 10pF -20°C ~ 70°C
LFXTAL055663REEL CFPX-104 8 MHz ±20ppm 18pF -40°C ~ 85°C
LFXTAL026392REEL 12SMX-B 16 MHz ±30ppm 16pF -20°C ~ 70°C
LFXTAL011301REEL HC49/4HSMX 8 MHz ±30ppm 30pF -10°C ~ 60°C
LFXTAL029370REEL HC49/4HSMX 16 MHz ±30ppm 18pF -20°C ~ 70°C
LFXTAL016788REEL HC49/4HSMX 6 MHz ±30ppm 30pF -10°C ~ 60°C
LFXTAL002995BULK WATCH 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
LFXTAL002997BULK WATCH 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
LFXTAL002996BULK WATCH 32.768 kHz ±15ppm 12.5pF -40°C ~ 85°C
LFXTAL025159REEL CFPX-56 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
LFXTAL003181REEL HC49/4HSMX 20 MHz ±30ppm 16pF -10°C ~ 60°C
LFXTAL003166REEL HC49/4HSMX 10 MHz ±30ppm 16pF -10°C ~ 60°C
LFXTAL029914REEL HC49/4HSMX 8 MHz ±30ppm 16pF -40°C ~ 85°C
LFXTAL003151REEL HC49/4HSMX 8 MHz ±30ppm 16pF -10°C ~ 60°C
LFXTAL003237REEL HC49/4HSMX 16 MHz ±30ppm 16pF -10°C ~ 60°C
LFXTAL014219BULK WATCH 32.768 kHz ±20ppm 6pF -40°C ~ 85°C
LFXTAL069494REEL IQXC-42 25 MHz ±15ppm 10pF -40°C ~ 85°C
LFXTAL069383REEL CFPX-218 24 MHz ±20ppm 10pF -40°C ~ 85°C
LFXTAL035264REEL CFPX-180 16 MHz ±50ppm 16pF -10°C ~ 60°C
LFXTAL069944REEL CFPX-180 12 MHz ±20ppm 15pF -40°C ~ 85°C
LFXTAL035268REEL CFPX-180 25 MHz ±50ppm 16pF -10°C ~ 60°C
LFXTAL056140REEL IQXC-180 AUTO 24 MHz ±50ppm 8pF -40°C ~ 125°C
LFXTAL069526REEL IQXC-26 32 MHz ±15ppm 8pF -20°C ~ 70°C
LFXTAL084885 IQXC-217 32.768 kHz ±20ppm 6pF -
LFXTAL036075BULK HC49/4H 27.12 MHz ±30ppm 10pF -10°C ~ 60°C
LFXTAL027945BULK HC49/4H 16 MHz ±30ppm 22pF -10°C ~ 60°C
LFXTAL071268REEL CFPX-218 AUTO 16 MHz ±10ppm 10pF -40°C ~ 125°C
LFXTAL061627REEL CFPX-104 8 MHz ±20ppm 16pF -40°C ~ 85°C
LFXTAL055901REEL CFPX-104 8 MHz ±20ppm 18pF -20°C ~ 70°C
LFXTAL059158REEL CFPX-104 8 MHz ±30ppm 16pF -40°C ~ 85°C
LFXTAL062558REEL IQXC-25 32.768 kHz ±10ppm 9pF -40°C ~ 85°C
LFXTAL026384REEL 12SMX-B 12 MHz ±30ppm 16pF -20°C ~ 70°C
LFXTAL026394REEL 12SMX-B 20 MHz ±30ppm 16pF -20°C ~ 70°C
LFXTAL056516REEL 12SMX-B 8 MHz ±30ppm 12pF -20°C ~ 70°C
LFXTAL026380REEL 12SMX-B 8 MHz ±30ppm 16pF -20°C ~ 70°C
LFXTAL055663BULK CFPX-104 8 MHz ±20ppm 18pF -40°C ~ 85°C
LFXTAL003033BULK HC49 1.8432 MHz ±20ppm 30pF -10°C ~ 60°C
LFXTAL020423REEL HC49/4HSMX 8 MHz ±30ppm 18pF -20°C ~ 70°C
LFXTAL024940REEL HC49/4HSMX 4 MHz ±30ppm 18pF -20°C ~ 70°C
LFXTAL026900REEL HC49/4HSMX 6 MHz ±20ppm 16pF -10°C ~ 60°C
LFXTAL030798REEL HC49/4HSMX 3.6864 MHz ±30ppm 16pF -40°C ~ 85°C
LFXTAL082071RL3K CFPX-180 16 MHz ±10ppm 8pF -40°C ~ 85°C
LFXTAL082069RL3K CFPX-180 12 MHz ±10ppm 8pF -40°C ~ 85°C
LFXTAL058637RL3K CFPX-180 25 MHz ±30ppm 12pF -40°C ~ 85°C
LFXTAL059627REEL IQXC-42 38.4 MHz ±15ppm 10pF -40°C ~ 85°C
LFXTAL082135CUTT IQXC-42 48 MHz ±10ppm 8pF -40°C ~ 85°C
LFXTAL063334REEL CFPX-218 25 MHz ±20ppm 10pF -40°C ~ 85°C
LFXTAL055474REEL CFPX-180 25 MHz ±50ppm 16pF -40°C ~ 85°C
LFXTAL059648REEL CFPX-180 40 MHz ±20ppm 18pF -40°C ~ 85°C
LFXTAL072604REEL CFPX-180 25 MHz ±10ppm 8pF -40°C ~ 85°C
LFXTAL069882REEL CFPX-180 12 MHz ±30ppm 10pF -40°C ~ 125°C
LFXTAL070065REEL CFPX-180 24 MHz ±10ppm 9pF -40°C ~ 85°C
LFXTAL055293REEL CFPX-180 14.7456 MHz ±50ppm 18pF -40°C ~ 85°C
LFXTAL009650REEL CFPX-180 16 MHz ±10ppm 16pF -40°C ~ 85°C
