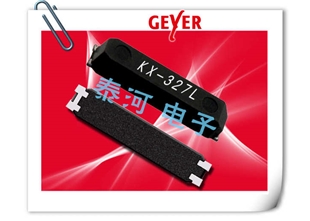

歐美晶振
- 產(chǎn)品型號：38038435
- 晶振頻率：32.768KHz
- 晶振尺寸：7.0*1.5*1.4mm
- 產(chǎn)品應用： Geyer晶振,格耶晶振,KX-327LT石英諧振器,12.87137晶振,7015mm晶振,貼片石英晶振,水晶振子,頻率32.768KHz,負載9.0pF,頻率容差20ppm,工作溫度-40~85°C,低老化晶振,抗沖擊晶振,抗振動晶振,移動無線電晶振,通訊設備晶振,...
-
12.87137|32.768KHz|9.0pF|Geyer晶振
12.87137|32.768KHz|9.0pF|Geyer晶振,Geyer晶振,格耶晶振,KX-327LT石英諧振器,12.87137晶振,7015mm晶振,貼片石英晶振,水晶振子,頻率32.768KHz,負載9.0pF,頻率容差20ppm,工作溫度-40~85°C,低老化晶振,抗沖擊晶振,抗振動晶振,移動無線電晶振,通訊設備晶振,消費電子產(chǎn)品晶振,藍牙耳機晶振.
12.87137|32.768KHz|9.0pF|Geyer晶振規(guī)格表
| part no. | 12.87137 |
| model | KX-327LT |
| frequency | 32.768 kHz |
| operating temperature | -40~+85℃ |
| frequency tolerance(df/F) at +25°C ±3°C | 土20ppm |
| temperature tolerance (parabolic coefficient) |
( -0.033 ±10 % ) × 10-6 / ℃2
|
| turnover temperature | +25°C±5℃ |
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 9.0 pF |
| shunt capacitance C0 typ. | 0.8 pF |
| series resistance R1 (ESR) max. | 65 KOhm |
| aging at +25°℃ (first year) max. | ±3 ppm |
| drive level | 1 μW max. |
| contents of reel | 3000 pcs. |
.jpg)
12.87137|32.768KHz|9.0pF|Geyer晶振尺寸圖
