歐美晶振
- 產品型號：69614453
- 晶振頻率：32.768KHz
- 晶振尺寸：8.0*3.8*2.5mm
- 產品應用： Geyer格耶晶振,KX-327ST進口貼片晶振,無源晶振,12.87109晶振,8038mm晶振,四腳貼片晶振,石英晶體諧振器,頻率32.768KHz,負載12pF,頻率容差15ppm,工作溫度-40~85°C, 高穩定性晶振,低老化晶振,無鉛環保晶振,儲存卡U盤晶振...
-
12.87109|32.768KHz|12.0pF|Geyer格耶晶振
12.87109|32.768KHz|12.0pF|Geyer格耶晶振,Geyer格耶晶振,KX-327ST進口貼片晶振,無源晶振,12.87109晶振,8038mm晶振,四腳貼片晶振,石英晶體諧振器,頻率32.768KHz,負載12pF,頻率容差15ppm,工作溫度-40~85°C, 高穩定性晶振,低老化晶振,無鉛環保晶振,儲存卡U盤晶振,音頻系統晶振,藍牙音響晶振,兒童智能手表晶振.
12.87109|32.768KHz|12.0pF|Geyer格耶晶振規格表
| part no. | 12.87109 |

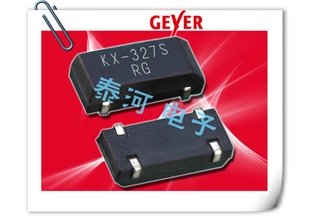

| model | KX-327ST |
| frequency | 32.768 kHz |
| operating temperature | -40°~+85℃ |
| frequency tolerance(df/F) at +25°C ±3°C | 土15ppm |
| temperature tolerance (parabolic coefficient) |
-0.034 ±0.006 ppm / °C2 typ., -0.042 ppm / °C2 max
|
| turnover temperature | +25°C±5℃ |
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 12 pF |
| motional capacitance( Co) | 0.9 pF |
| series resistance R1 (ESR) max. | 50 KOhm |
| aging at +25°℃ (first year) max. | ±3 ppm |
| drive level | 1 μW max. |
| contents of reel | 3000 pcs. |
.jpg)
12.87109|32.768KHz|12.0pF|Geyer格耶晶振尺寸圖
