12.61009|32MHz|8pF|丹麥Geyer晶振,丹麥Geyer晶振,KX-3T進口晶振,無源晶振,12.61009晶振,石英晶體諧振器,1.2×1.0mm晶振,四腳貼片晶振,SMD晶體,頻率32MHz,負載8pF,頻率容差10ppm,工作溫度-40~85°C,高可靠性晶振,無鉛環保晶振,低老化晶振,移動通信晶振,智能手機晶振,平板電腦晶振,便攜式設備晶振.

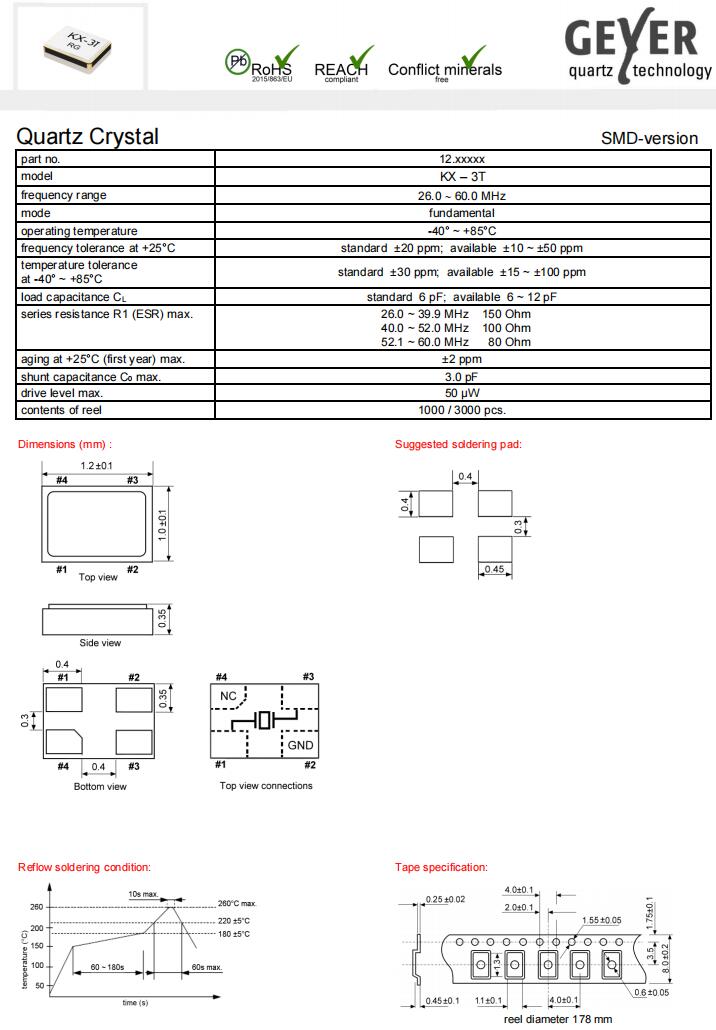

12.61009|32MHz|8pF|丹麥Geyer晶振規格表
part no. | 12.61009 |
model | KX-3T |
frequency range | 32MHz |
mode |
fundamental |
operating temperature | -40~+85℃ |
frequency tolerance at +25°C | 土10 ppm |
temperature tolerance |
土15 ppm
|
storage temperature range | -55°C~+125℃ |
load capacitance CL | 8 pF |
shunt capacitance C0 max. | 3.0 pF |
series resistance R1 (ESR) max. | 150 Ohm |
aging at +25°℃ (first year) max. | ±2 ppm |
drive level | 50 μW max. |
contents of reel | 1000 /3000pcs. |
.jpg)

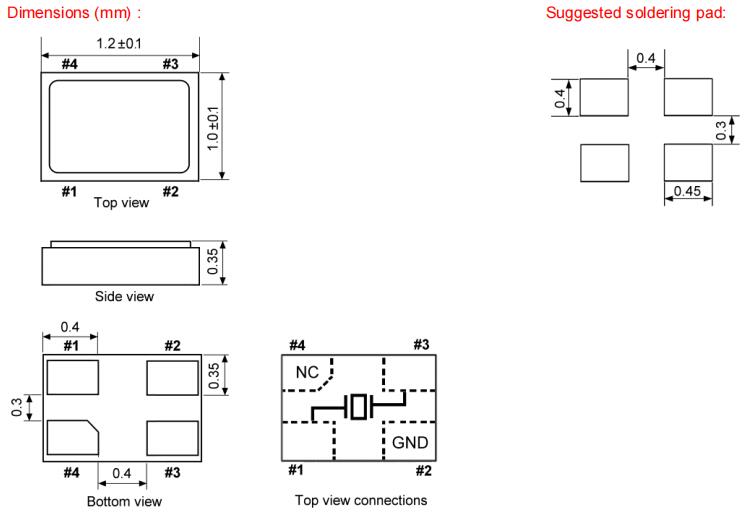

12.61009|32MHz|8pF|丹麥Geyer晶振尺寸圖
