- 產品型號：77833175
- 晶振頻率：28.63636MHz
- 晶振尺寸：3.2*2.5*0.9mm
- 產品應用： GEYER晶振,KX-7E石英晶振,無源晶振,12.60068晶振,晶體諧振器,進口貼片晶振,3225mm晶振,四腳封裝晶振,SMD晶體,頻率28.63636MHz,負載20pF,頻率容差30ppm,工作溫度-40~105°C,耐高溫晶振,高品質晶振,低老化晶振,無線通信...
-

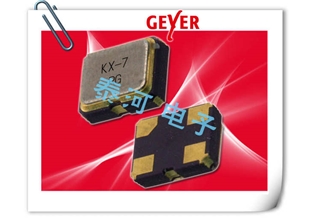

12.60068|28.63636MHz|20pF|GEYER晶振
12.60068|28.63636MHz|20pF|GEYER晶振,GEYER晶振,KX-7E石英晶振,無源晶振,12.60068晶振,晶體諧振器,進口貼片晶振,3225mm晶振,四腳封裝晶振,SMD晶體,頻率28.63636MHz,負載20pF,頻率容差30ppm,工作溫度-40~105°C,耐高溫晶振,高品質晶振,低老化晶振,無線通信設備晶振,工業控制系統晶振,健身設備晶振,醫療設備晶振.
12.60068|28.63636MHz|20pF|GEYER晶振規格表
| part no. | 12.60068 |
| model | KX-7E |
| frequency range | 28.63636 MHz |
|
mode |
fundamental |
| operating temperature | -40~+105℃ |
| frequency tolerance at +25°C | 土30 ppm |
| temperature tolerance |
土50 ppm
|
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 20 pF |
| shunt capacitance C0 typ. | 3.0 pF |
| series resistance R1 (ESR) max. | 60 Ohm |
| aging at +25°℃ (first year) max. | ±2 ppm |
| drive level | 200 μW max. |
| contents of reel | 1000 pcs. |
.jpg)
12.60068|28.63636MHz|20pF|GEYER晶振尺寸圖
