歐美晶振
- 產品型號：30944760
- 晶振頻率：30MHz
- 晶振尺寸：3.2*2.5*0.9mm
- 產品應用： Geyer晶振,KX-7石英晶體,無源晶振,12.60038晶振,進口貼片晶振,晶體諧振器,四腳封裝晶振,3225mm晶振,SMD晶振,頻率30MHz,負載10pF,頻率容差10ppm,工作溫度-20~70°C,小體積晶振,高精度晶振,無鉛環保晶振,網絡交換機晶振...
-

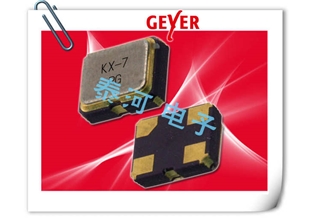

12.60038|30MHz|10pF|Geyer Quartz Crystals
12.60038|30MHz|10pF|Geyer Quartz Crystals,Geyer晶振,KX-7石英晶振,無源晶振,12.60038晶振,進口貼片晶振,晶體諧振器,四腳封裝晶振,3225mm晶振,SMD晶振,頻率30MHz,負載10pF,頻率容差10ppm,工作溫度-20~70°C,小體積晶振,高精度晶振,無鉛環保晶振,網絡交換機晶振,便攜式設備晶振,平板電腦晶振,無線路由器晶振.
12.60038|30MHz|10pF|Geyer Quartz Crystals規格表
| part no. | 12.60038 |
| model | KX-7 |
| frequency range | 30 MHz |
|
mode |
fundamental |
| operating temperature | -20~+70℃ |
| frequency tolerance at +25°C | 土10 ppm |
| temperature tolerance |
土10 ppm
|
| storage temperature range | -55°C~+125℃ |
| load capacitance CL | 10 pF |
| shunt capacitance C0 typ. | 3.0 pF |
| series resistance R1 (ESR) max. | 60 Ohm |
| aging at +25°℃ (first year) max. | ±2 ppm |
| drive level | 200 μW max. |
| contents of reel | 1000 pcs. |
.jpg)
12.60038|30MHz|10pF|Geyer Quartz Crystals尺寸圖
.jpg)
