12.60017|32MHz|8pF|Geyer高精度晶振,Geyer晶振,KX-7T無源晶振,進口晶振,12.60017晶振,貼片石英晶振,石英諧振器,3225mm晶振,四腳貼片晶振,SMD晶振,頻率32MHz,負載8pF,頻率容差10ppm,工作溫度-40~85°C,小體積晶振,高精度晶振,無鉛環保晶振,智能手機晶振,筆記本電腦晶振,千兆以太網晶振,室內路由器晶振.

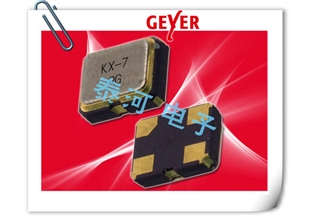

12.60017|32MHz|8pF|Geyer高精度晶振規格表
part no. | 12.60017 |
model | KX-7T |
frequency range | 32 MHz |
mode |
fundamental |
operating temperature | -40~+85℃ |
frequency tolerance at +25°C | 土10ppm |
temperature tolerance |
土30ppm
|
storage temperature range | -55°C~+125℃ |
load capacitance CL | 8 pF |
shunt capacitance C0 typ. | 3.0 pF |
series resistance R1 (ESR) max. | 60 Ohm |
aging at +25°℃ (first year) max. | ±2 ppm |
drive level | 200 μW max. |
contents of reel | 1000 pcs. |
.jpg)

12.60017|32MHz|8pF|Geyer高精度晶振尺寸圖
